Válvulas para Cilindros

Válvulas Industriais - Medicinais - Especiais

Válvulas de agulha, esfera e membrana para gases industriais e medicinais. Com tecnologia de vedação de precisão, suportam altas pressões e oferecem controle fino de fluxo.

Materiais: aço inox, latão, PTFE
Pressões de até 400 bar
Tamanhos de 1/8" a 2"
Certificação para gases medicinais

As características, faixas, materiais, normas e certificações variam conforme o modelo e o fabricante. Confirme os requisitos no datasheet vigente e na proposta técnica.

Descrição

Válvulas de agulha, esfera e membrana para gases industriais e medicinais. Com tecnologia de vedação de precisão, suportam altas pressões e oferecem controle fino de fluxo.

Características Principais

Materiais: aço inox, latão, PTFE
Pressões de até 400 bar
Tamanhos de 1/8" a 2"
Certificação para gases medicinais
Conexões rosca, solda e flange

Aplicações Recomendadas

Distribuição de gases medicinais

Laboratórios e P&D

Indústria química

Automação de processos

Solicitar Informações

Nossa equipe técnica está pronta para atender sua demanda.

(31) 9 8670-8742

info@primeproducts.ind.br

Solicitar Orçamento / Suporte

Outros Produtos

Cilindros de Alumínio Cilindros Tipo 4 Conexões para Instrumentação Detectores de Vazamento

Modelos e Especificações Técnicas

CYLINDER VALVES FOR O2, MEDICAL O2, H2 & INERT GASES

MODEL	DESCRIPTION	APPLICATION

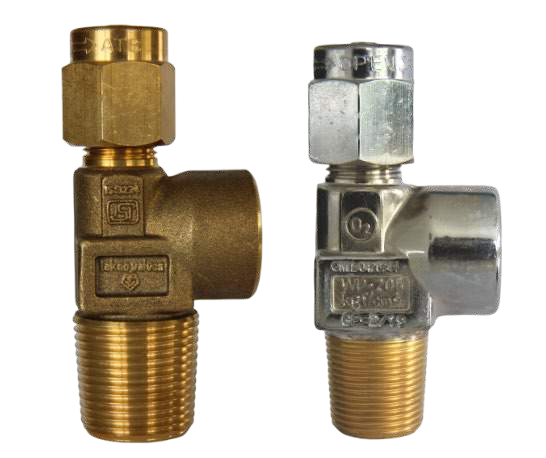

IHO-06	Key Operated Valves in Packed Design. 200 bar WP. Forged brass body with PTFE packing.	O2, Medical O2, H2 & Inert Gases

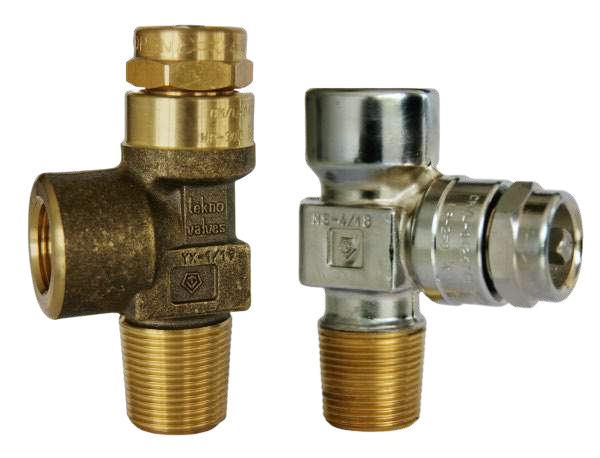

KHO-10/I & KVO-10/I	Key Operated Valves in O-ring Seal Design. 360 bar WP. Features PA 66 thrust washer & EPDM O-rings.	O2, Medical O2, H2 & Inert Gases

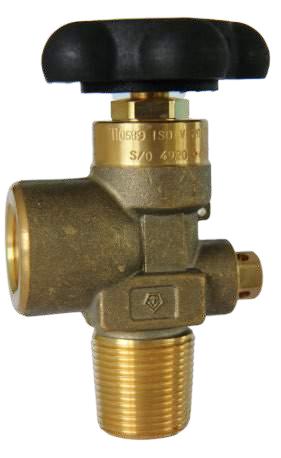

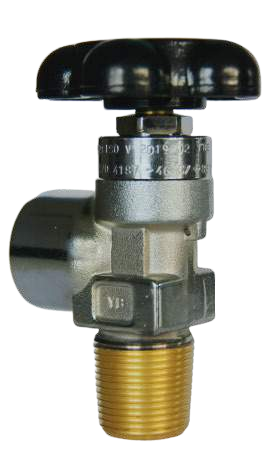

SWN-12/O	Handwheel Operated Valves in O-ring Seal Design. 360/540 bar WP. Aluminium Handwheel.	O2, Medical O2, H2 & Inert Gases

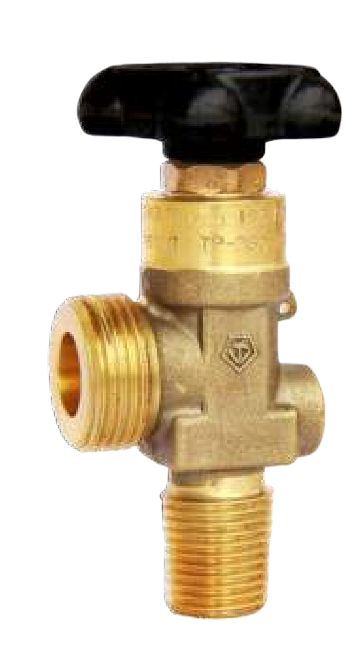

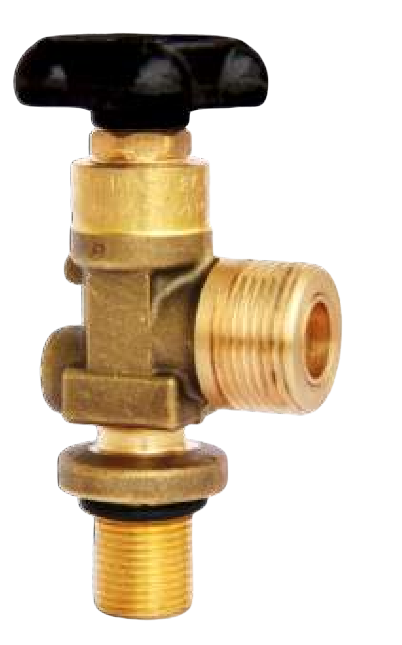

SWN-12/45	Handwheel Operated Valves for Cylinders up to 10 Litres WC. Compact design with O-ring seal.	O2, Medical O2, H2 & Inert Gases

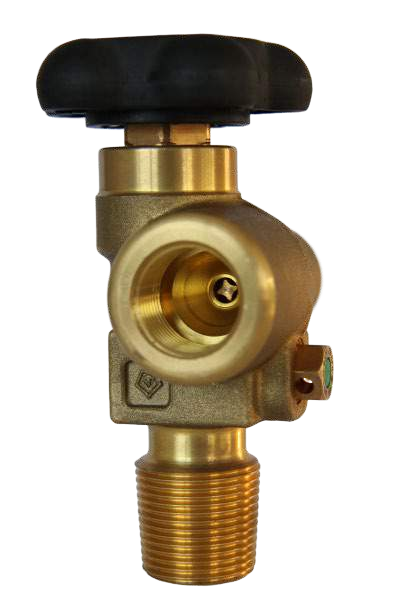

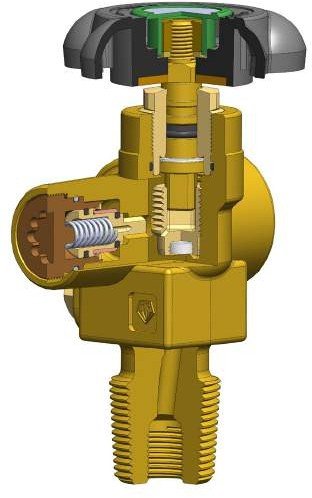

BOWN-12/O & BOWN-12/N	Handwheel Operated Offline Residual Pressure Valves (RPVs). 360 bar WP. Built-in NRV function.	O2, Medical O2, H2 & Inert Gases

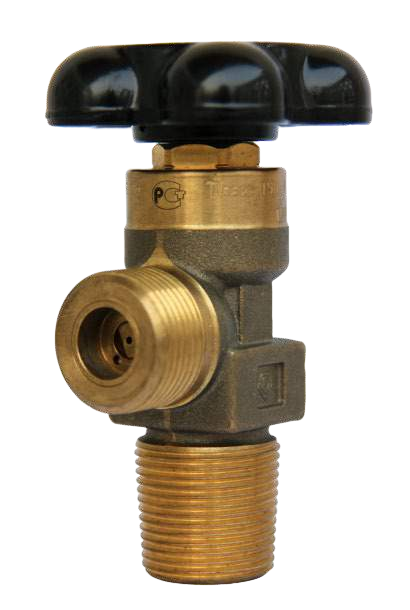

IRPV-10 I/O	Handwheel Operated Inline Residual Pressure Valves (RPVs). 276/360 bar WP.	O2, Medical O2, H2 & Inert Gases

CYLINDER VALVES FOR CARBON DIOXIDE

MODEL	DESCRIPTION	APPLICATION

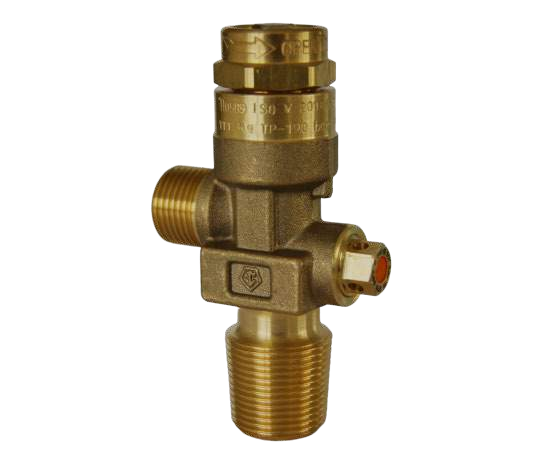

SKN-12/C	Key Operated Valves in O-ring Seal Design. 360 bar WP. Equipped with Burst Disc.	Carbon Dioxide

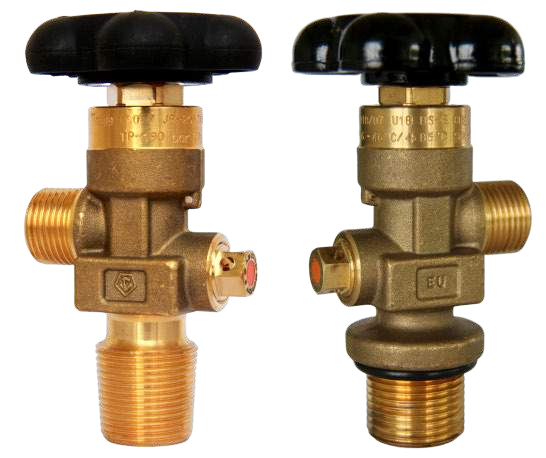

SWN-12/C	Handwheel Operated Valves in O-ring Seal Design. 360 bar WP.	Carbon Dioxide

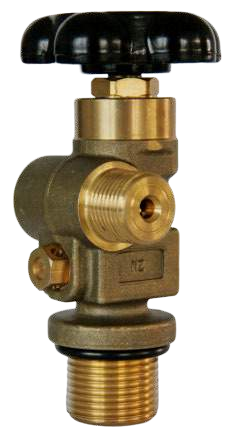

BOWN-12/C	Handwheel Operated Offline Residual Pressure Valves (RPVs). 360 bar WP.	Carbon Dioxide

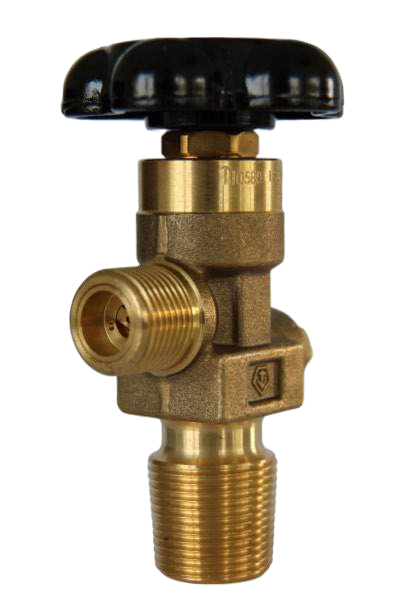

IWN-12/C	Handwheel Operated Inline Residual Pressure Valves (RPVs). 360 bar WP.	Carbon Dioxide

CYLINDER VALVES FOR ACETYLENE

MODEL	DESCRIPTION	APPLICATION

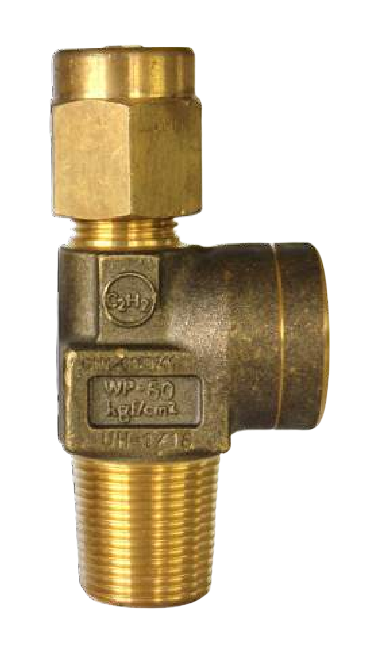

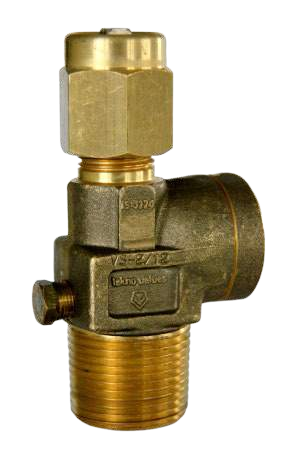

IHO-06	Key Operated Valves in Packed Design. 60 kgf/cm2 WP. Available with Fusible Plug.	Acetylene

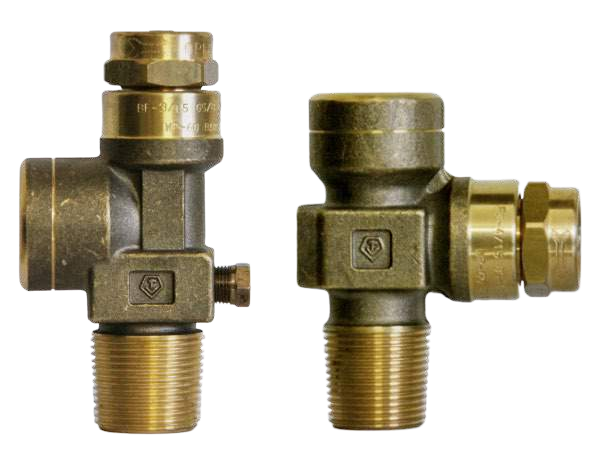

KHO-10/D & KVO-10/D	Key Operated Valves in O-ring Seal Design. 60 bar WP.	Acetylene

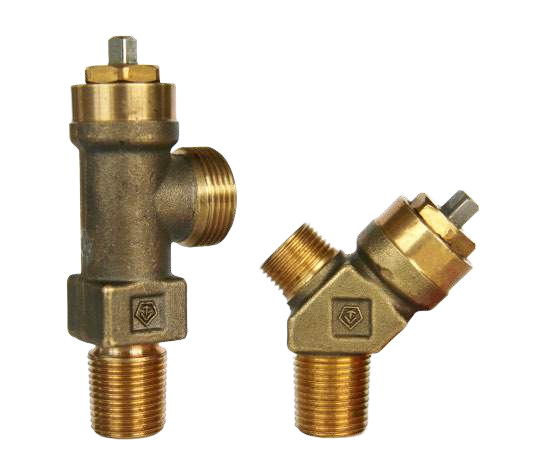

BSKN-12/D & BAKN-12/D	Acetylene Valves for "B" & "MC" Style Cylinders. Key Operated in O-ring Seal Design.	Acetylene

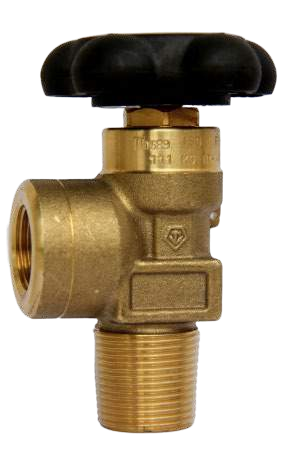

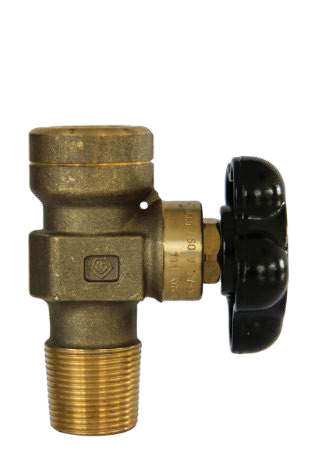

CWH-10/D & CWV-10/D	Handwheel Operated Valves in O-ring Seal Design. 60 bar WP. HT brass body.	Acetylene

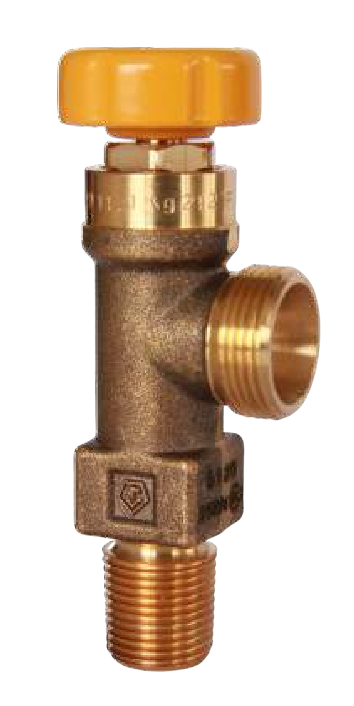

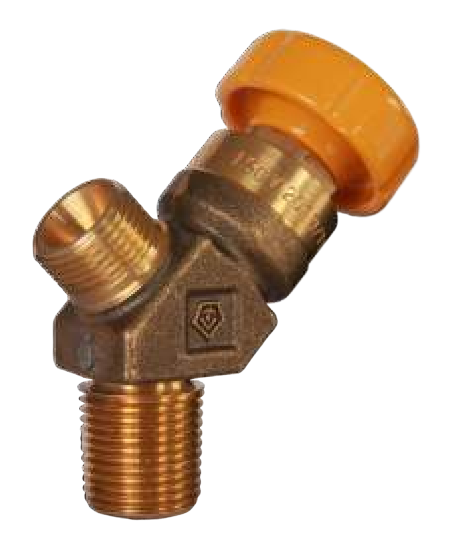

BSWN-12/D-30 & BAWN-12/D-30	Handwheel Operated Acetylene Valves for "B" & "MC" Style Cylinders.	Acetylene

CYLINDER VALVES FOR CHLORINE & CORROSIVE GASES

IMAGE	MODEL	DESCRIPTION	APPLICATION

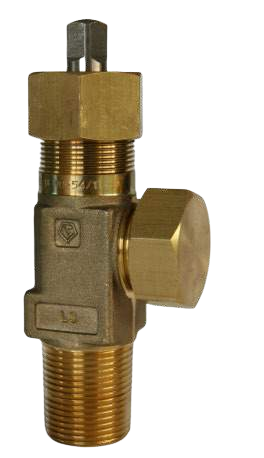

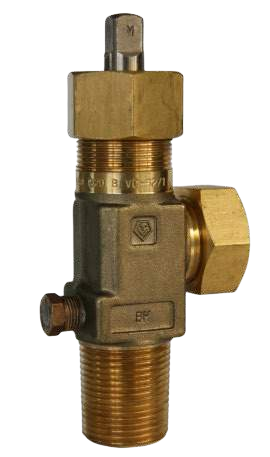

	CAV-06	Key Operated Valves in Standard Chlorine Institute Packed Design / ISO V Design. 3000 psig WP. Al-Si Bronze body.	Chlorine & Corrosive Gases

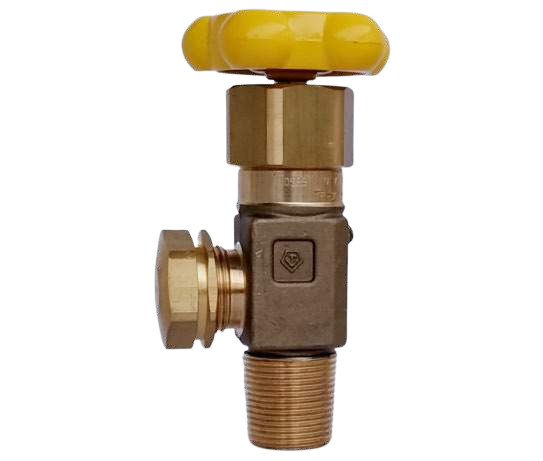

	SWN-22/V	Handwheel Operated Compression Packed Valves with O-ring Seal. Al-Si Bronze / HT brass body.	Chlorine & Corrosive Gases

CYLINDER VALVES FOR SPECIALITY, AMMONIA & REFRIGERANT GASES

MODEL	DESCRIPTION	APPLICATION

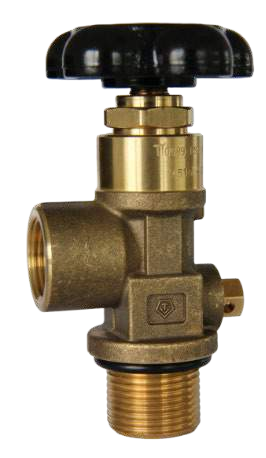

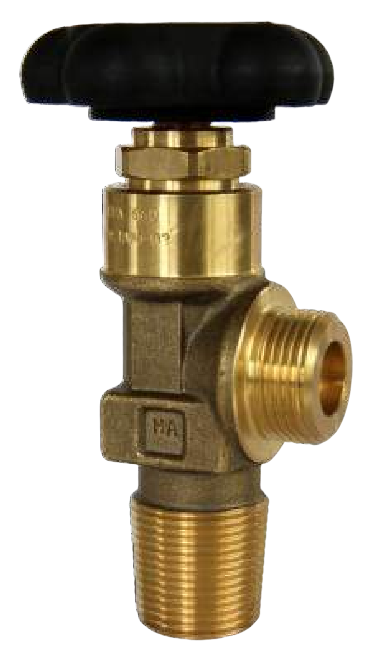

RWH-03	Handwheel Operated Brass Valves in Diaphragm Design. 250 bar WP.	Speciality & Refrigerant Gases

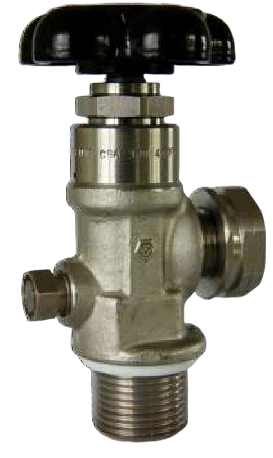

TWH-03	Handwheel Operated Stainless Steel Valves in Diaphragm Design. 240 bar WP. SS 303 / SS 316L body.	Speciality, Toxic & Corrosive Gases

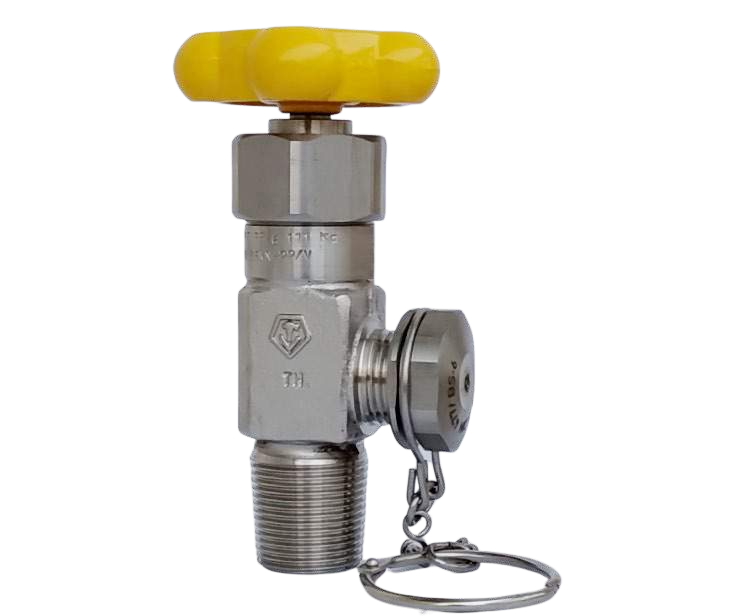

SSWN-22/V-S3	Handwheel Operated Compression Packed Valves with O-ring Seal. SS 303 body.	Ammonia & Amines

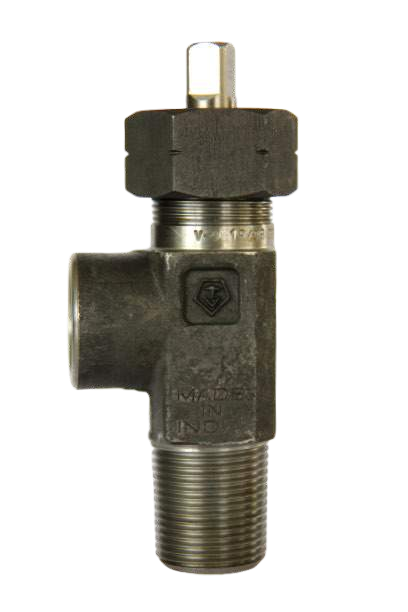

CST-06	Key Operated Carbon Steel Valves in Packed Design (CGA V-9 / IS 3224). Low carbon steel body.	Ammonia & Amines

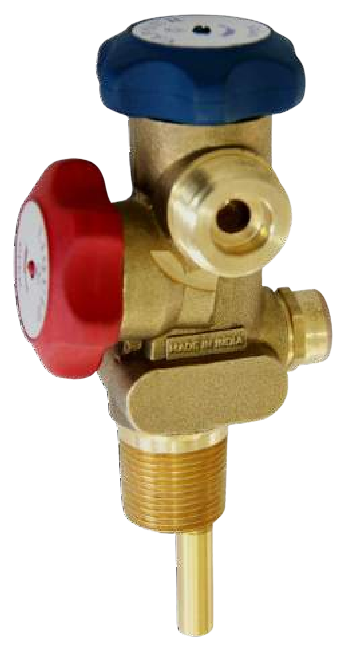

RDP-03	Dual Port (Liquid / Gas) Handwheel Operated Brass Valves in Diaphragm Design for Refrigerant Gases.	Speciality Gases

CYLINDER VALVES FOR BREATHING AIR, NGV & FIRE FIGHTING

MODEL	DESCRIPTION	APPLICATION

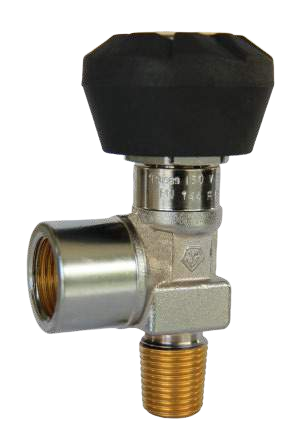

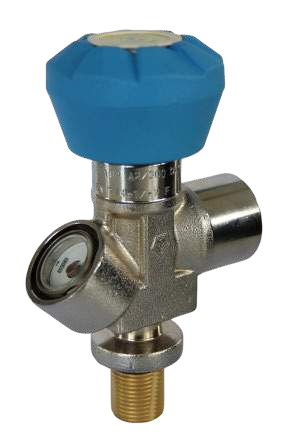

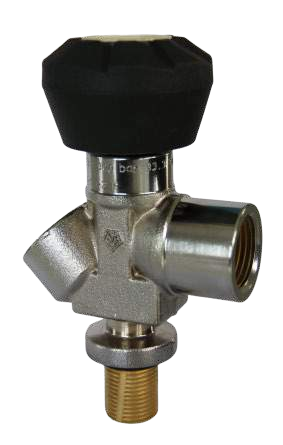

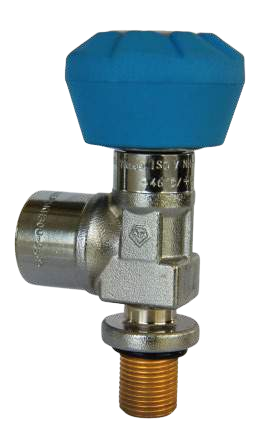

HBA-10	Handwheel Operated Valves in O-ring Seal Design for Breathing Air.	Breathing Air

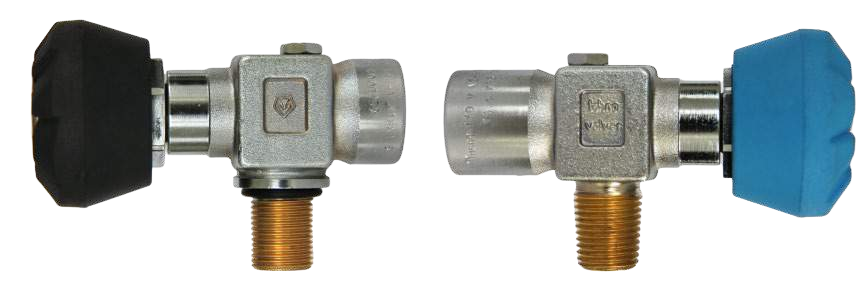

MBA-10	Medical Valves in O-ring Seal Design. 360 bar WP.	Medical Breathing Air

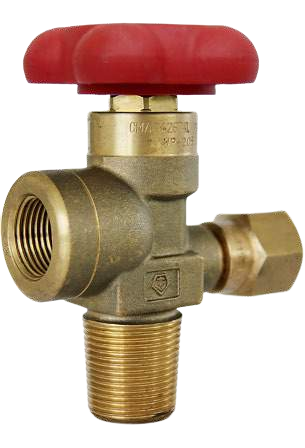

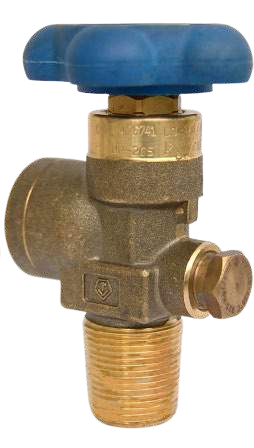

ALV-10	Auto Lifting Valves for Fire Fighting / CO2 Cylinders. 360 bar WP.	Fire Fighting

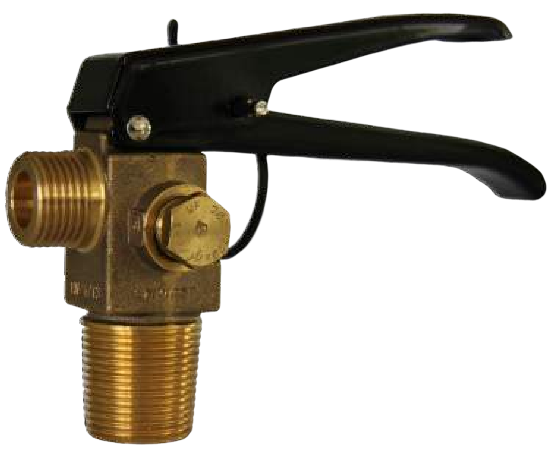

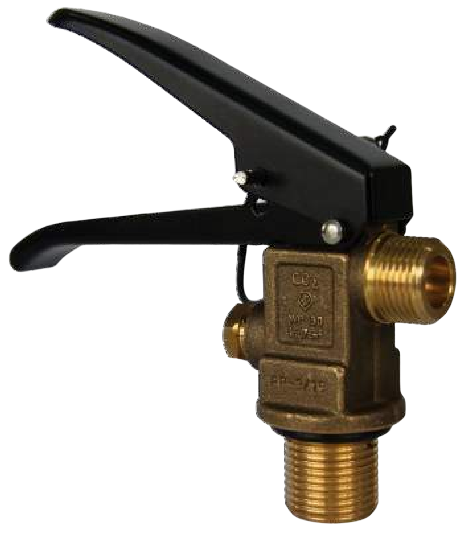

FSG-07	Handwheel Operated Valves in Packed Design. Heavy duty design.	NGV (Natural Gas for Vehicles)

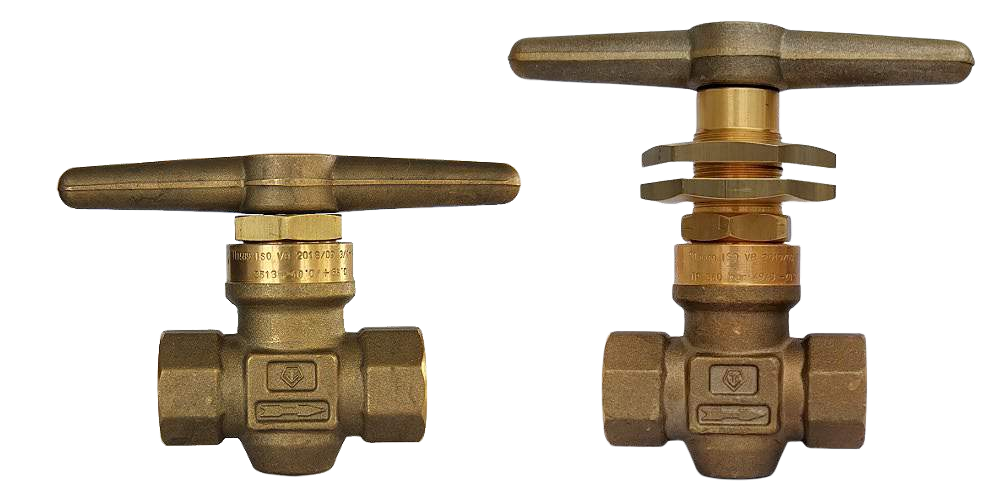

BMV-09	Dual Port (Liquid / Gas) Handwheel Operated Brass Valves in Diaphragm Design for Refrigerant Gases.	NGV (Natural Gas for Vehicles)
