Instrumentação
Conexões para Instrumentação
Conexões para Instrumentação
Conexões certificadas para aplicações de instrumentação analítica e industrial. Compatibilidade com transmissores, analisadores e sistemas de processo.
- Conexões TK-Fujikin e equivalentes
- Materiais: SS 316, Hastelloy, PTFE
- Certificação para fluidos agressivos
- Conexões compressão, NPT e flange
As características, faixas, materiais, normas e certificações variam conforme o modelo e o fabricante. Confirme os requisitos no datasheet vigente e na proposta técnica.
Descrição
Conexões certificadas para aplicações de instrumentação analítica e industrial. Compatibilidade com transmissores, analisadores e sistemas de processo.
Características Principais
- Conexões TK-Fujikin e equivalentes
- Materiais: SS 316, Hastelloy, PTFE
- Certificação para fluidos agressivos
- Conexões compressão, NPT e flange
- Estanqueidade garantida a altas pressões
Aplicações Recomendadas
Análise de processo
Instrumentação industrial
Laboratórios
Petroquímica
Solicitar Informações
Nossa equipe técnica está pronta para atender sua demanda.
(31) 9 8670-8742
info@primeproducts.ind.br
Modelos e Especificações Técnicas
ULTRA HIGH PURITY (UHP) FITTINGS & COMPONENTS
| IMAGE | PRODUCT FAMILY | DESCRIPTION | APPLICATION |
|---|---|---|---|
   | Bend Fittings | High purity bend fittings sizes 1/4" ~ 600A for semiconductor applications. | UHP Systems |

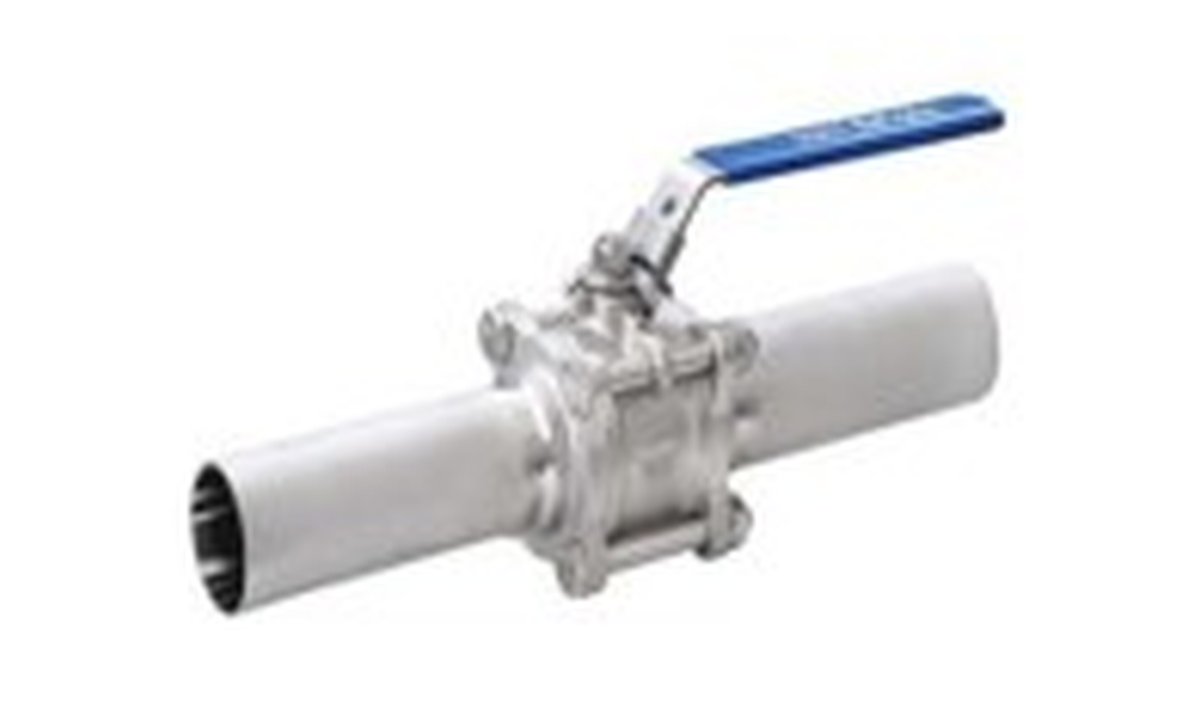

 | Clean Ball V/V | Ultra clean ball valves for high purity gas distribution lines. | UHP Systems |

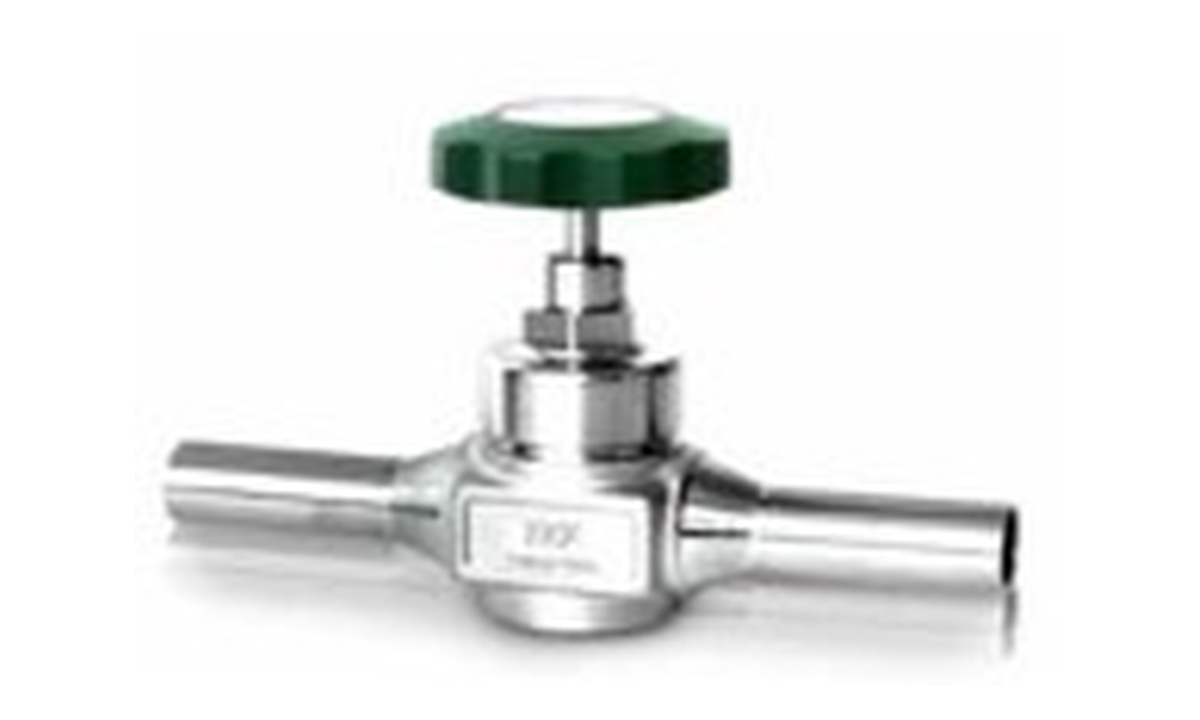

 | Bellows V/V | Bellows sealed valves ensuring absolute leak tightness in UHP environments. | UHP Systems |

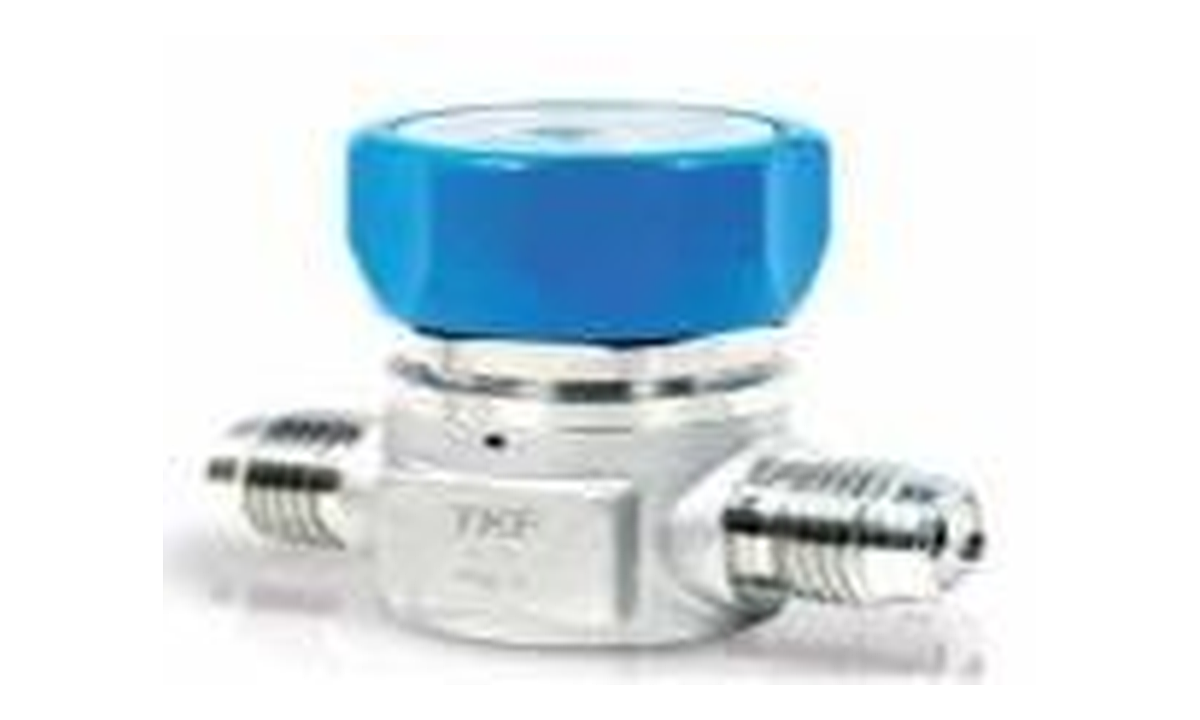

 | Diaphragm V/V | Precision metal diaphragm valves for zero particle generation. | UHP Systems |

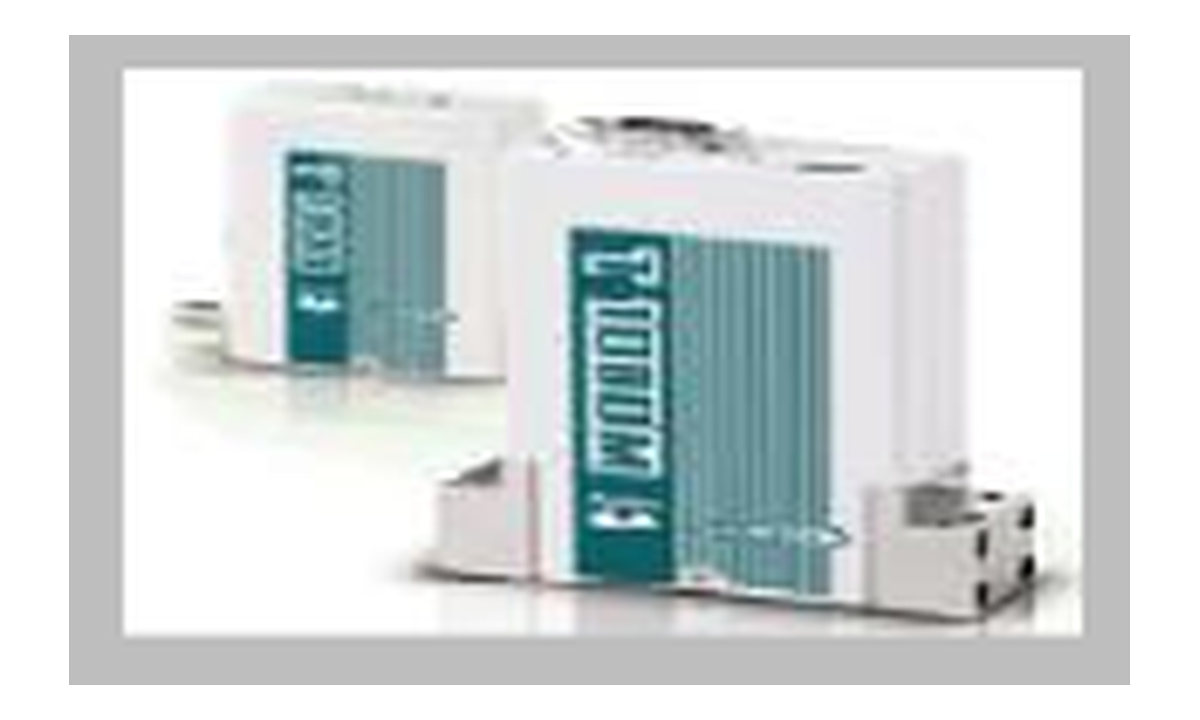

 | MFC (Mass Flow Controller) | Accurate and stable mass flow controllers for critical process gases. | UHP Systems |

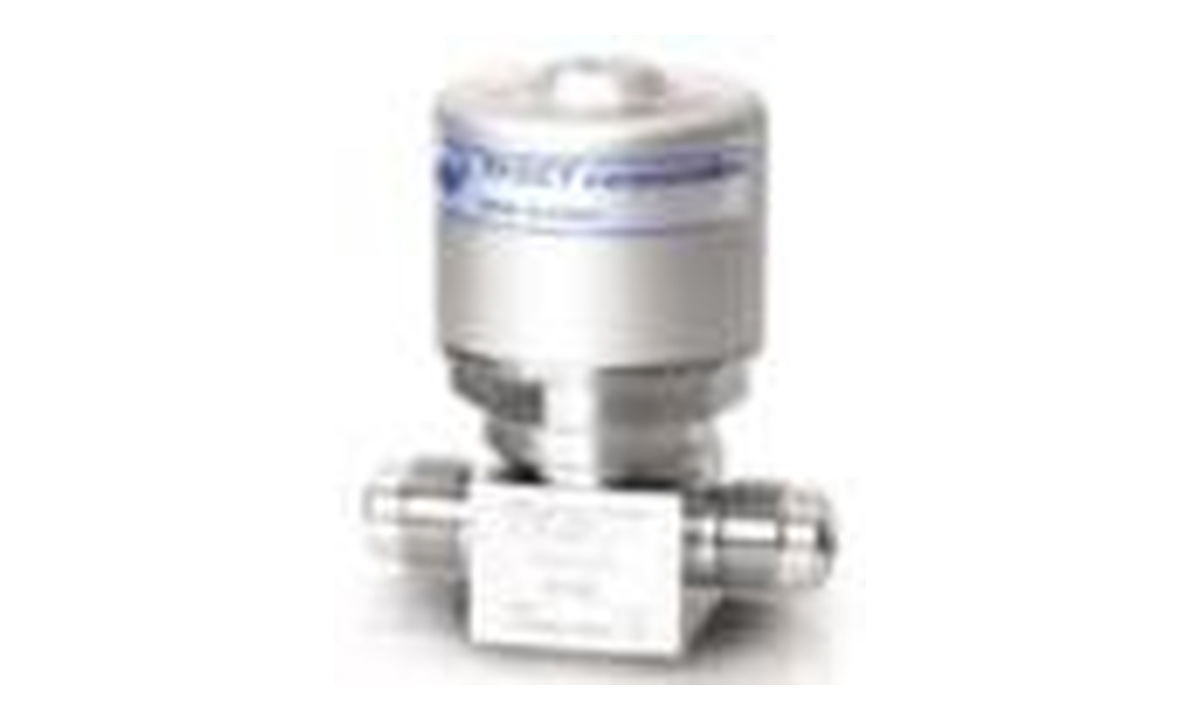

 | PT Sensor | High-accuracy pressure transducers for UHP gas line monitoring. | UHP Systems |

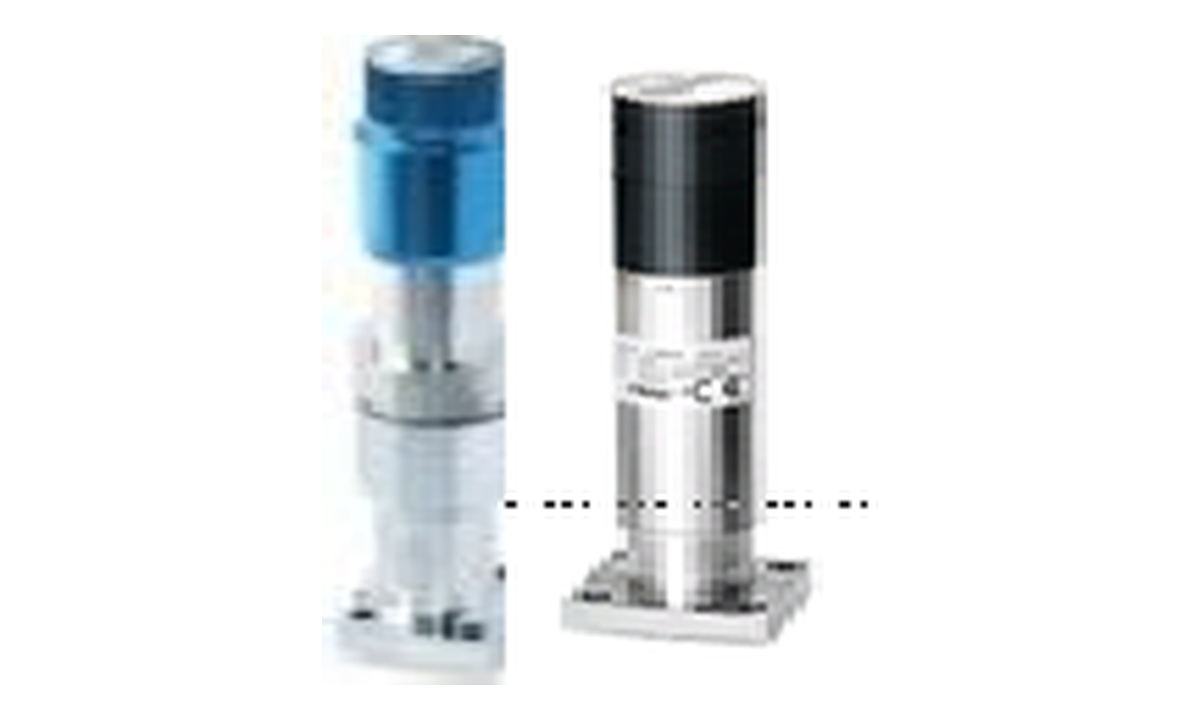

 | Filter | In-line gas filters to eliminate nano-particles from the process stream. | UHP Systems |

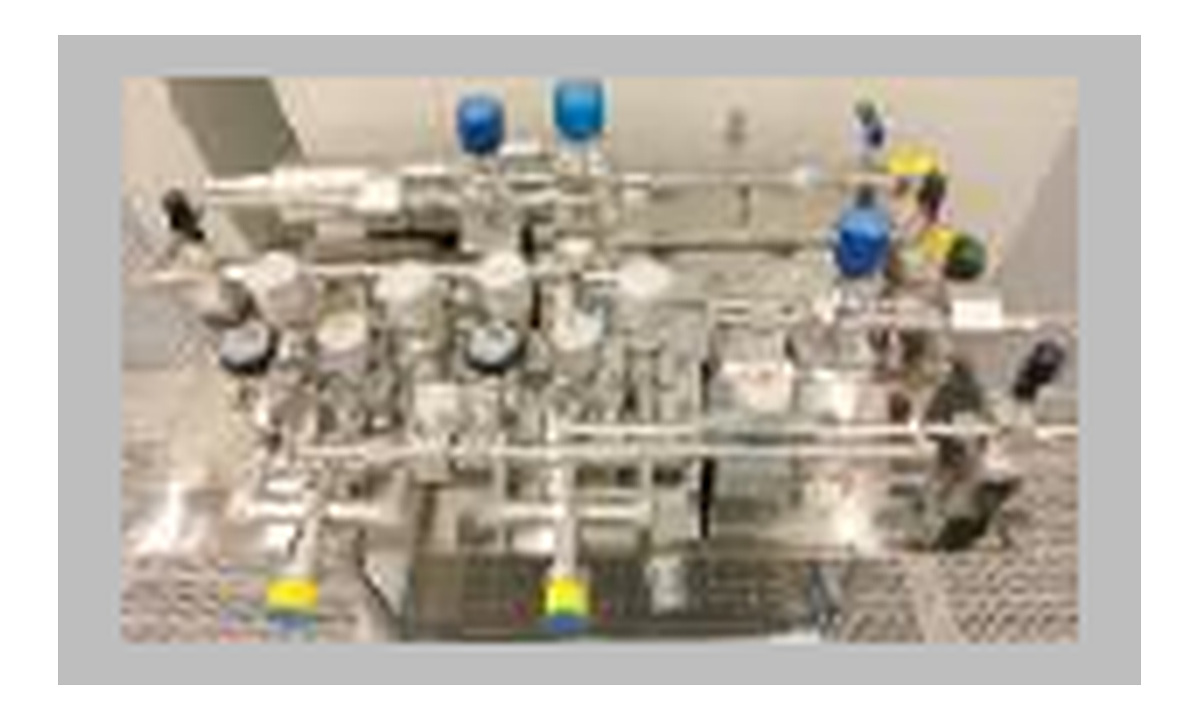

 | Gas Box | Integrated gas distribution boxes engineered for semiconductor tools. | UHP Systems |

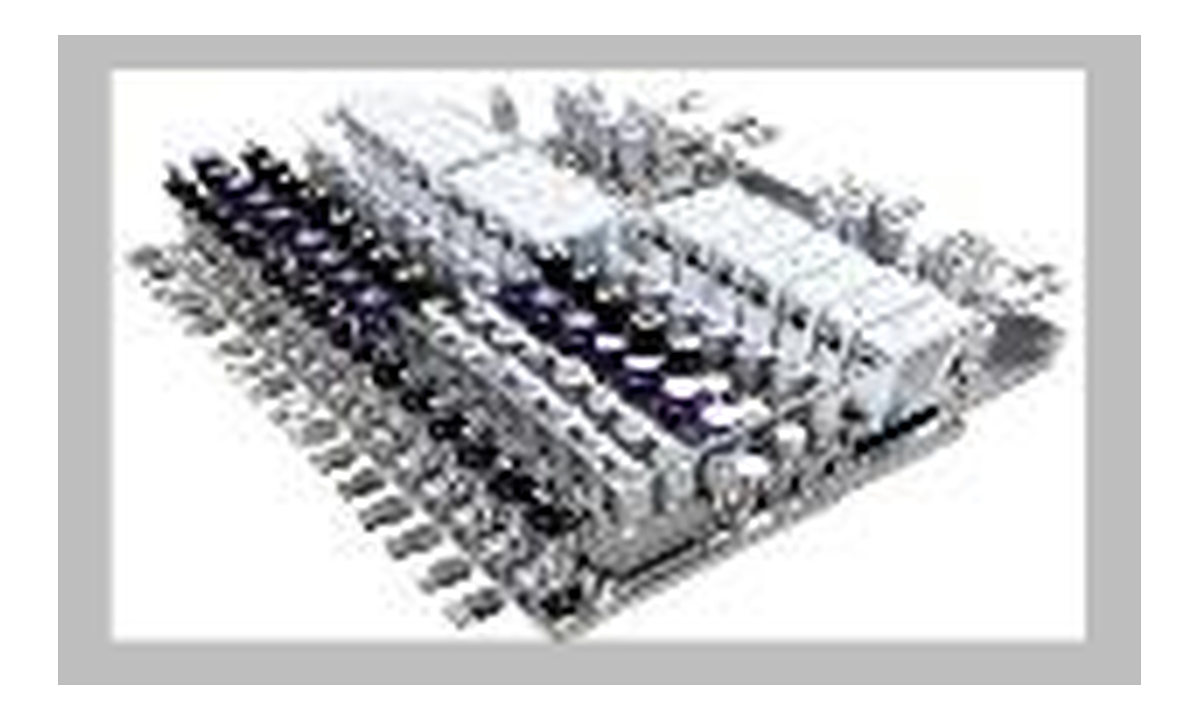

 | IGS (Integrated Gas System) | Modular surface-mount gas panels for compact and efficient delivery. | UHP Systems |

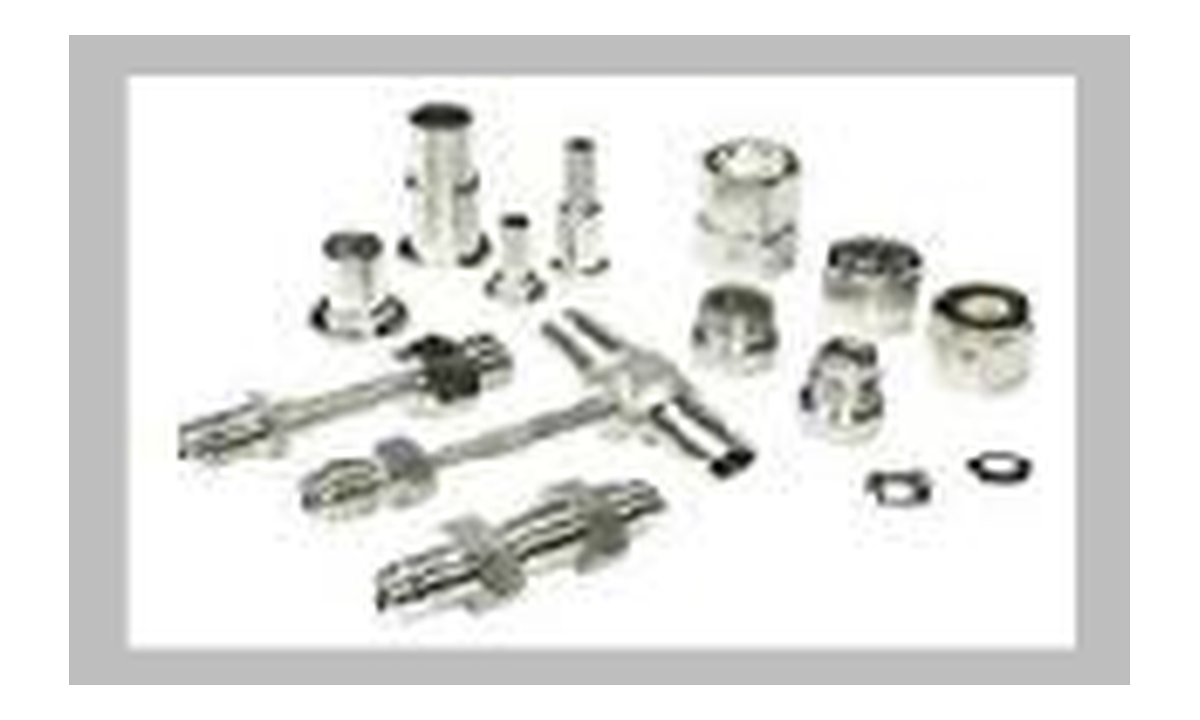

 | Micro Fitting | Miniaturized fittings for tightly spaced UHP analytical instrumentation. | UHP Systems |
GENERAL INDUSTRIAL (GI) FITTINGS & COMPONENTS
| IMAGE | PRODUCT FAMILY | DESCRIPTION | APPLICATION |
|---|---|---|---|

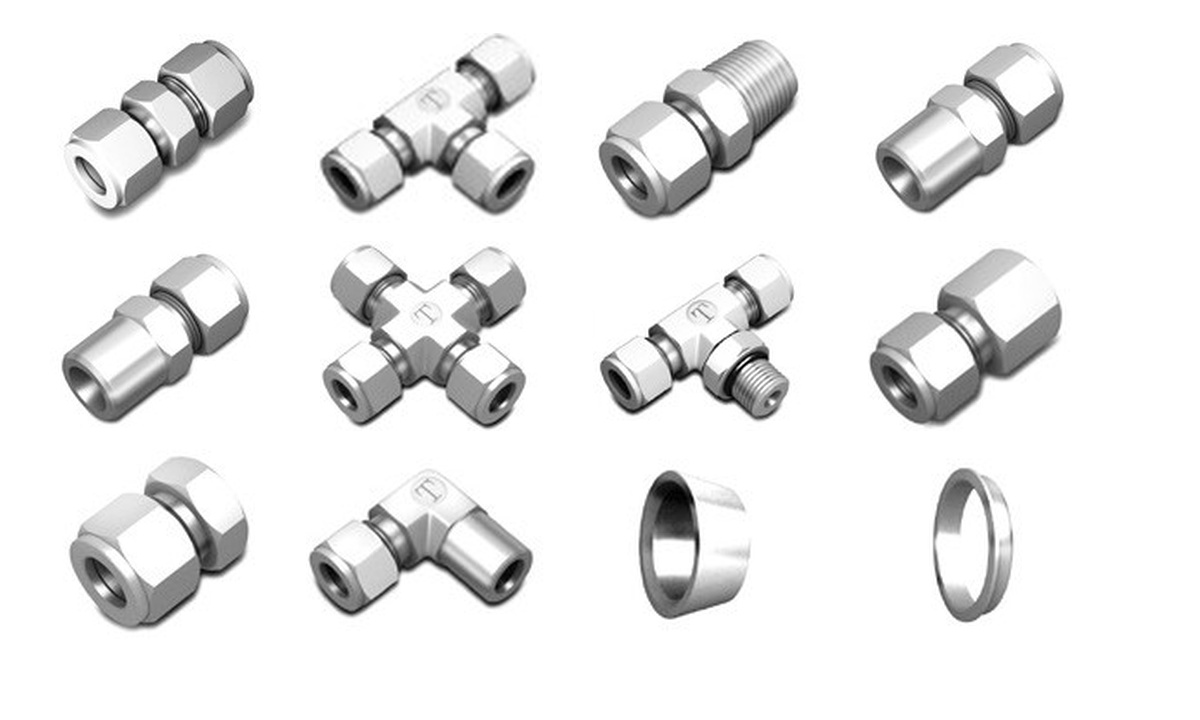

 | Lok Fittings | Twin-ferrule compression fittings for leak-free connections in harsh industrial environments. | General Industrial |

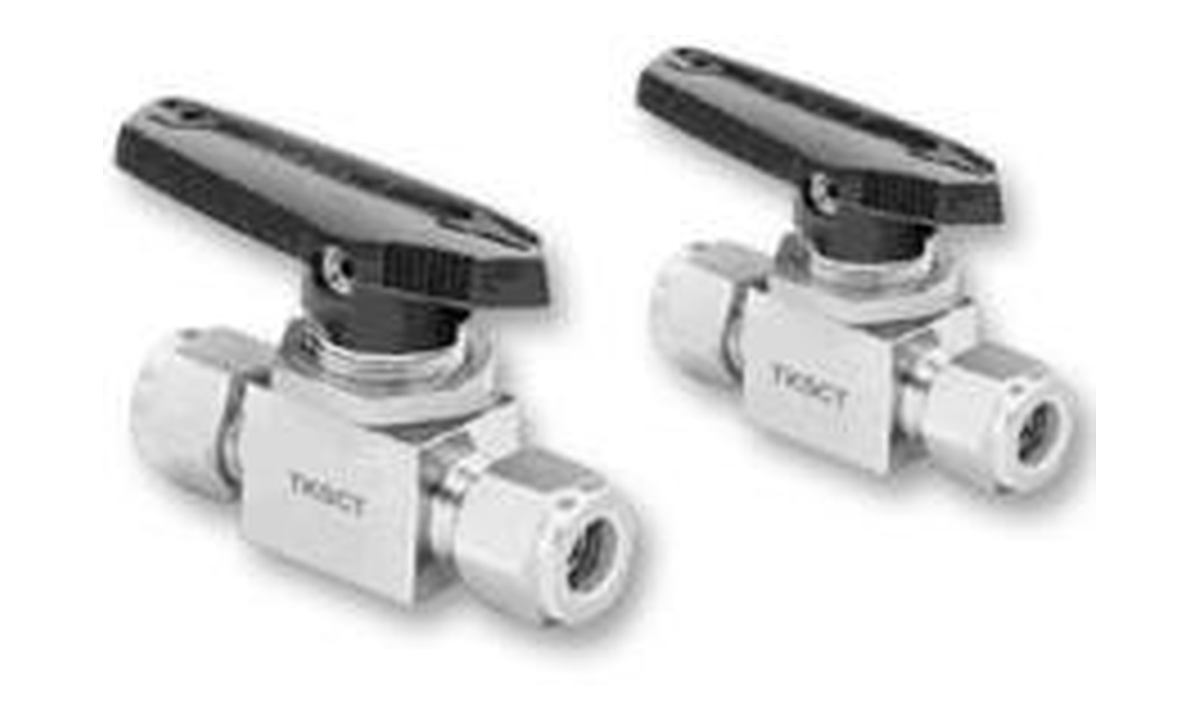

 | Ball V/V | Reliable quarter-turn ball valves for quick shut-off in plant utility lines. | General Industrial |

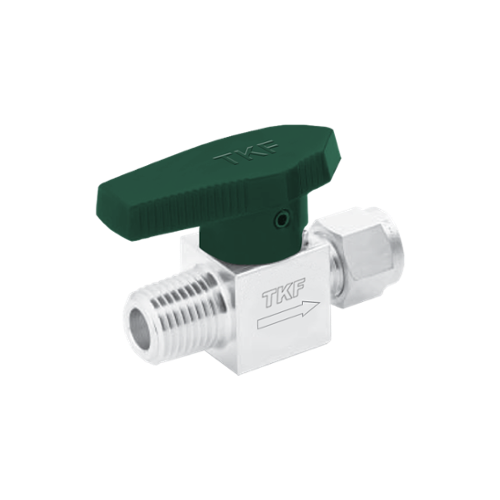

 | Plug V/V | High-performance plug valves for precise flow control and durability. | General Industrial |

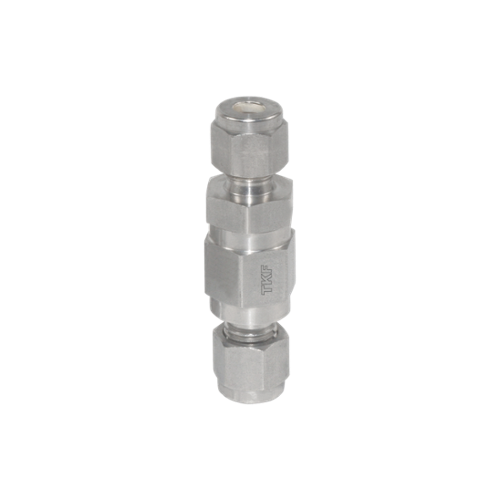

 | Check V/V | Prevents reverse flow to protect pumps, compressors, and sensitive instrumentation. | General Industrial |

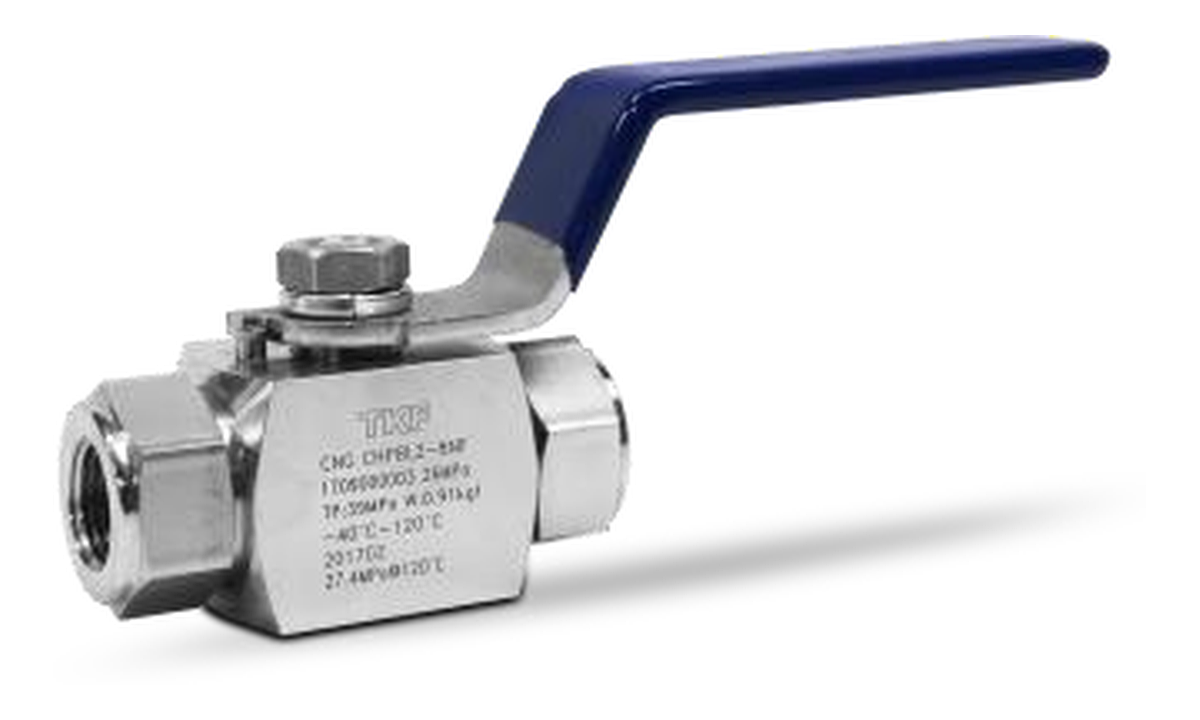

 | Trunnion V/V | Robust trunnion mounted ball valves designed for high pressure and large bore pipelines. | General Industrial |

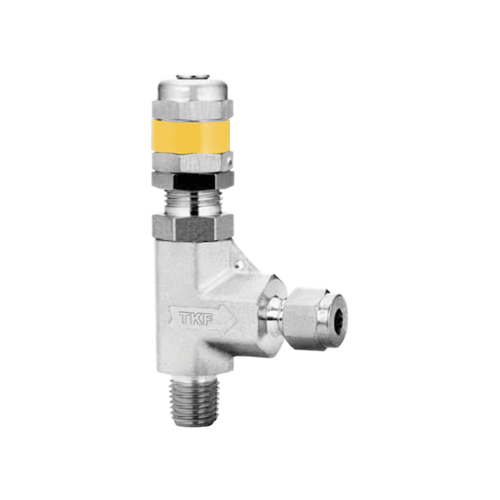

 | Relief V/V | Safety relief valves to protect lines and vessels from overpressure conditions. | General Industrial |

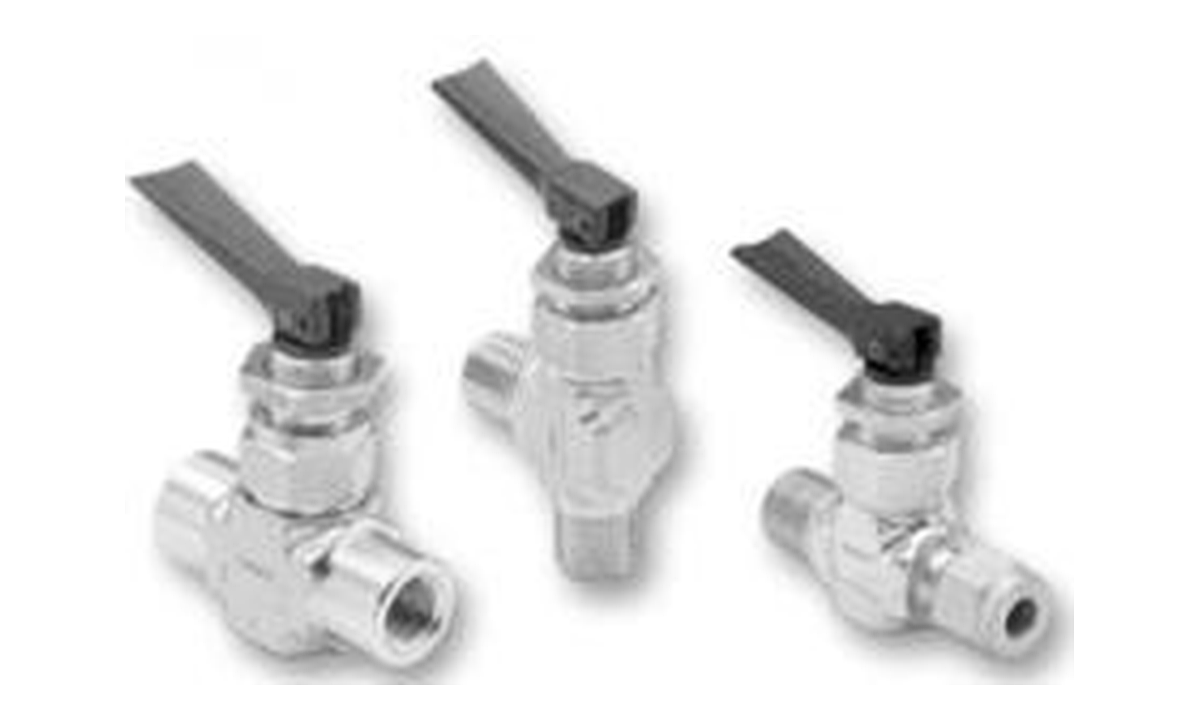

 | Toggle V/V | Fast-acting toggle valves for immediate manual on/off control. | General Industrial |
HYDROGEN FUEL CELL VEHICLE & DRONE COMPONENTS
| IMAGE | PRODUCT FAMILY | DESCRIPTION | APPLICATION |
|---|---|---|---|

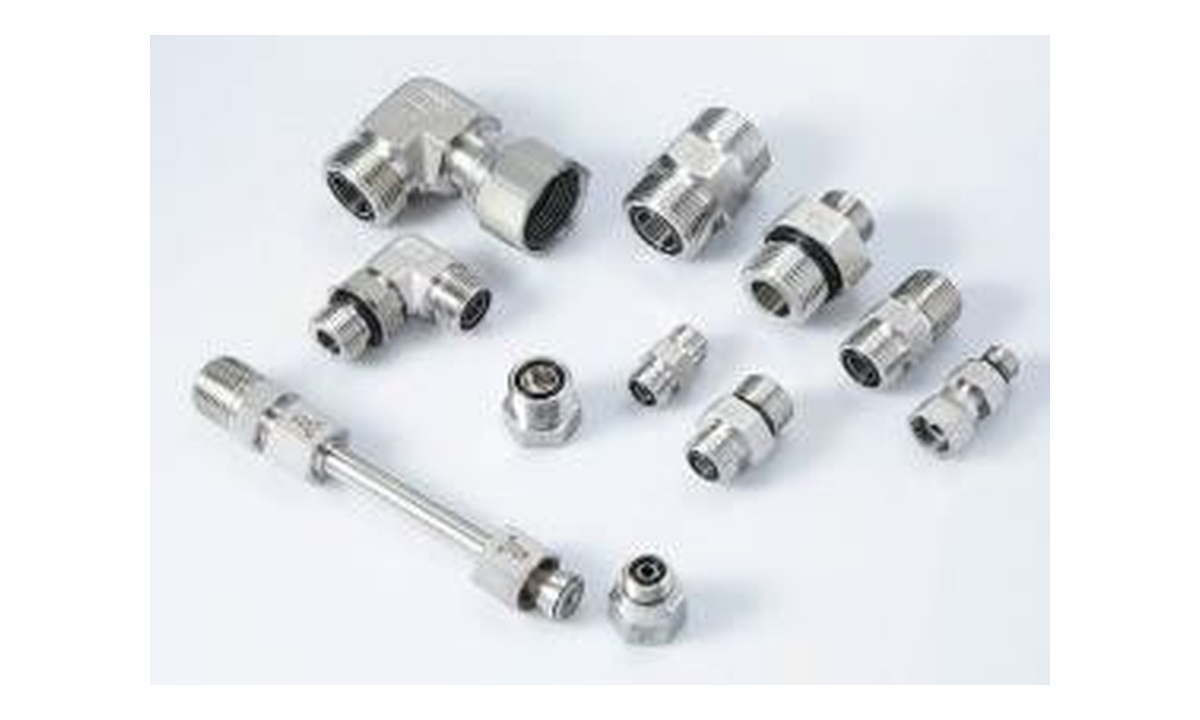

 | ORFS Fitting | O-Ring Face Seal Fittings for 350 / 700bar. | H2 Fuel Cell Vehicle |

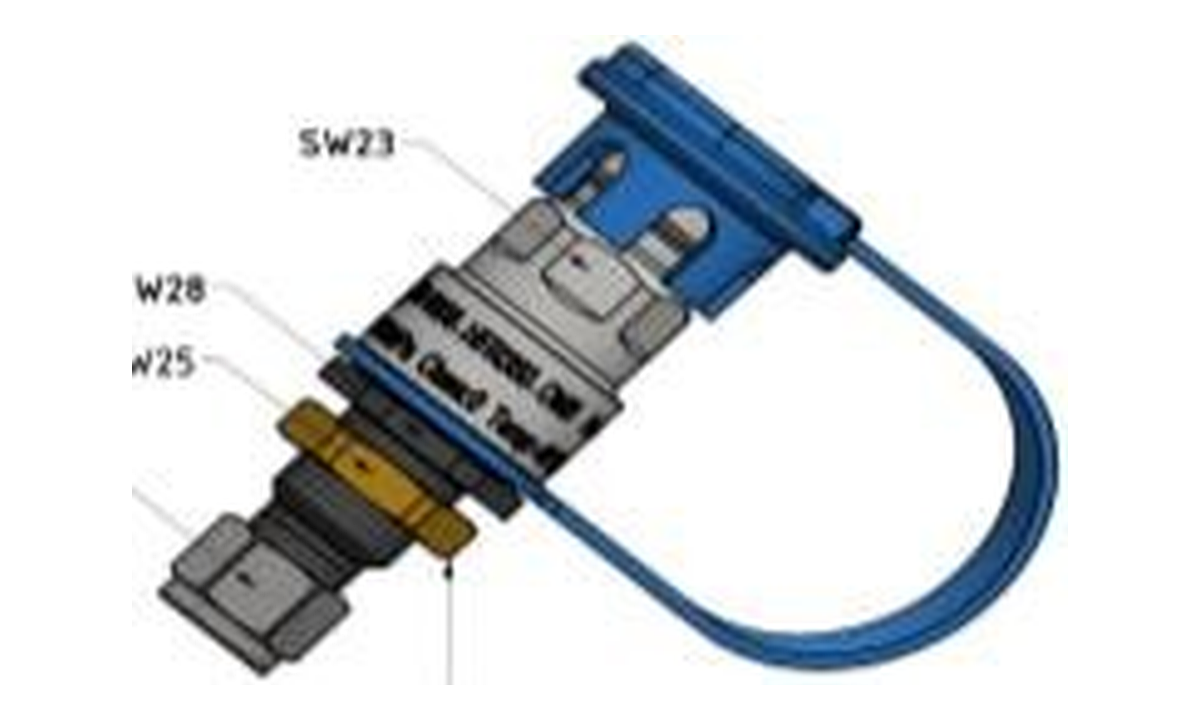

 | Receptacle | Receptacles for H2 charging. W.P: 350bar. | H2 Fuel Cell Vehicle |

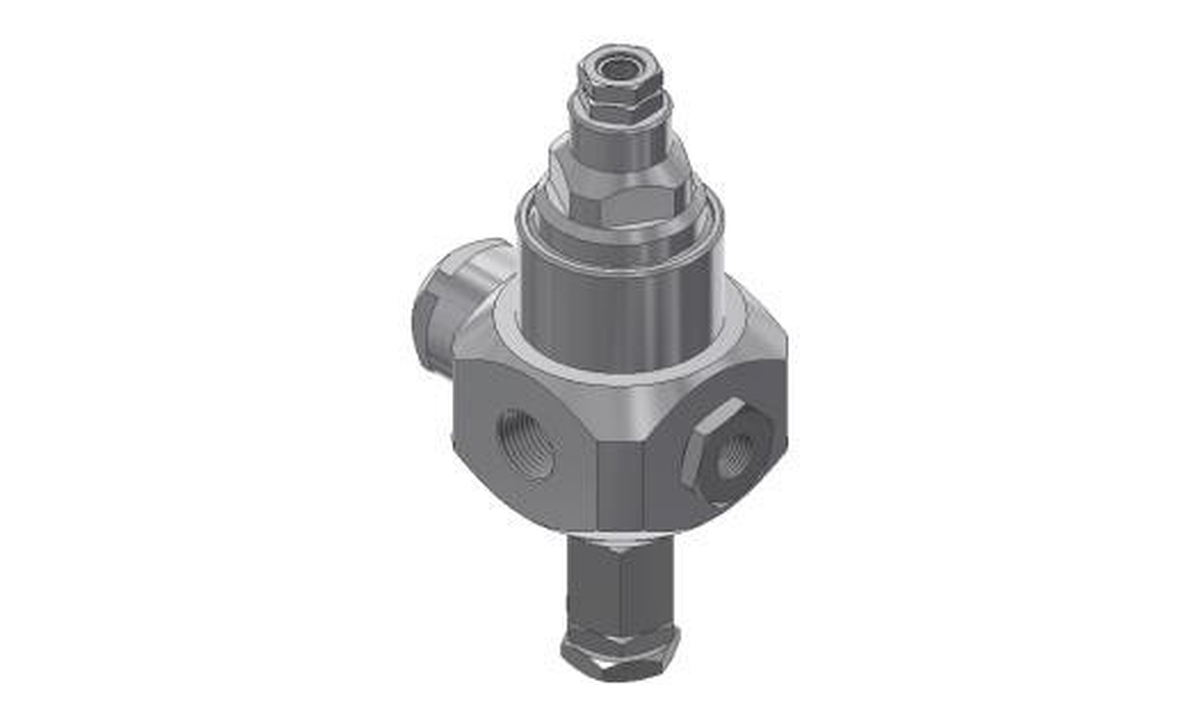

 | Regulator | Regulator Body: 316L SS. W.P: 875 bar. | H2 Fuel Cell Vehicle |

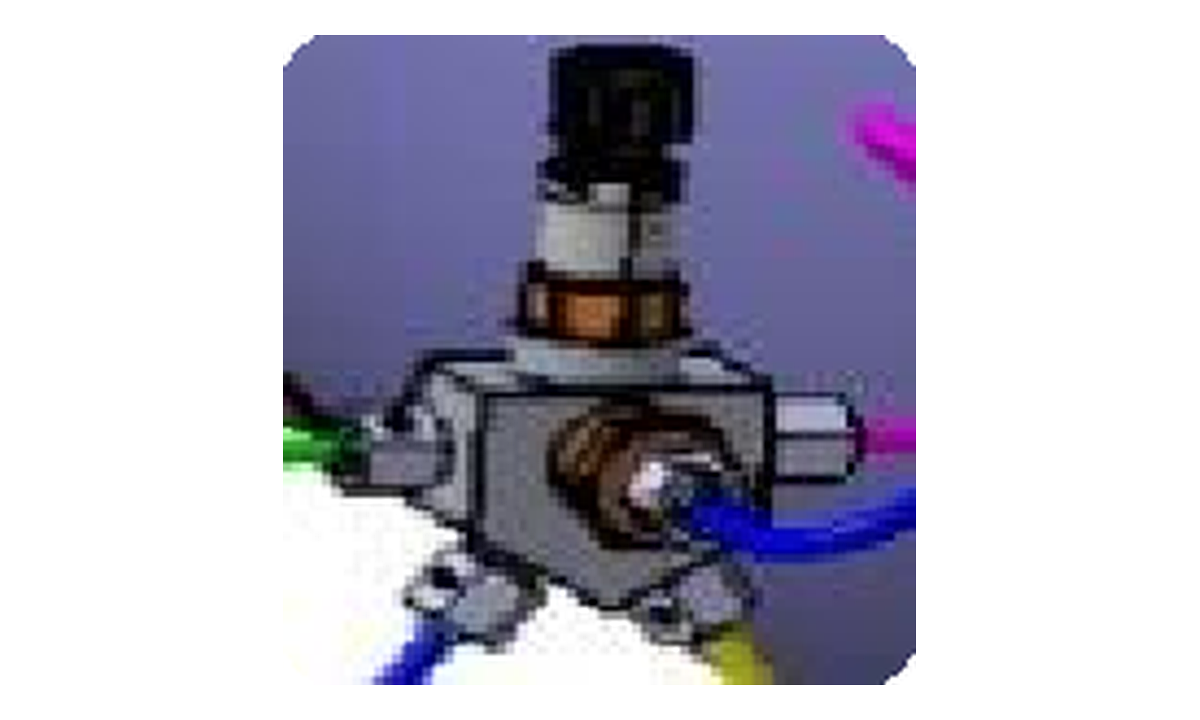

 | Check Valve | Check valves for high pressure hydrogen. | H2 Fuel Cell Vehicle |

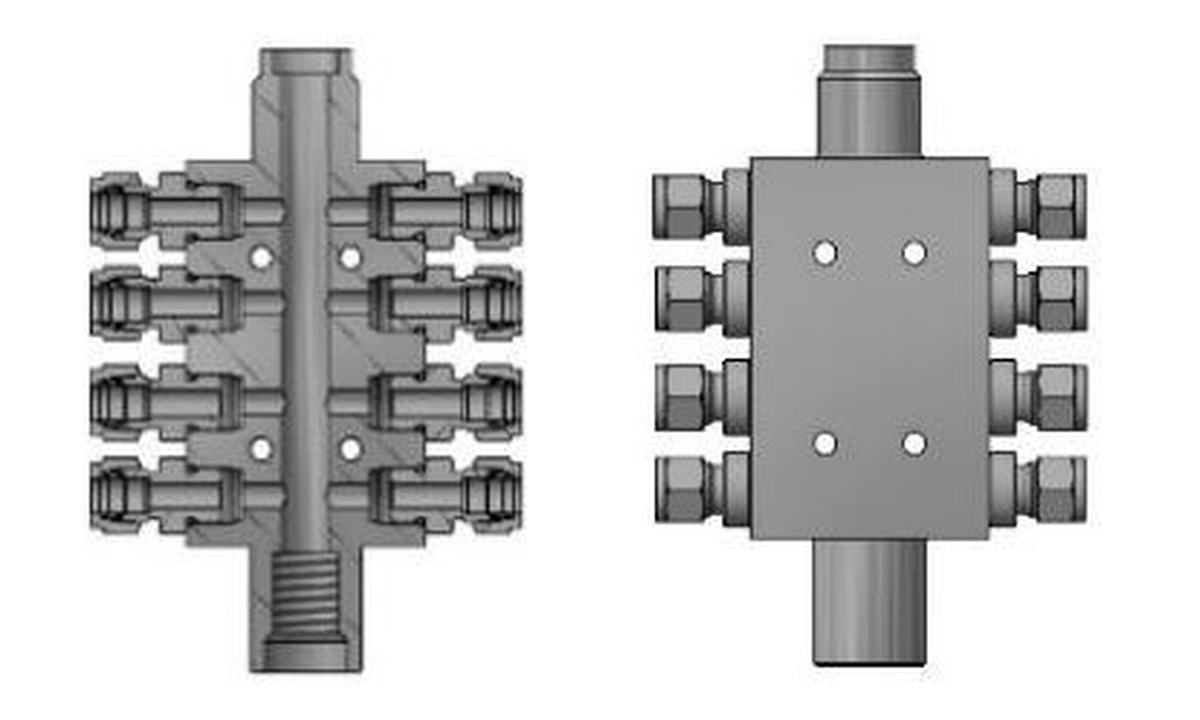

 | Manifold Valve | W.P: 350 / 700bar. | H2 Fuel Cell Vehicle |

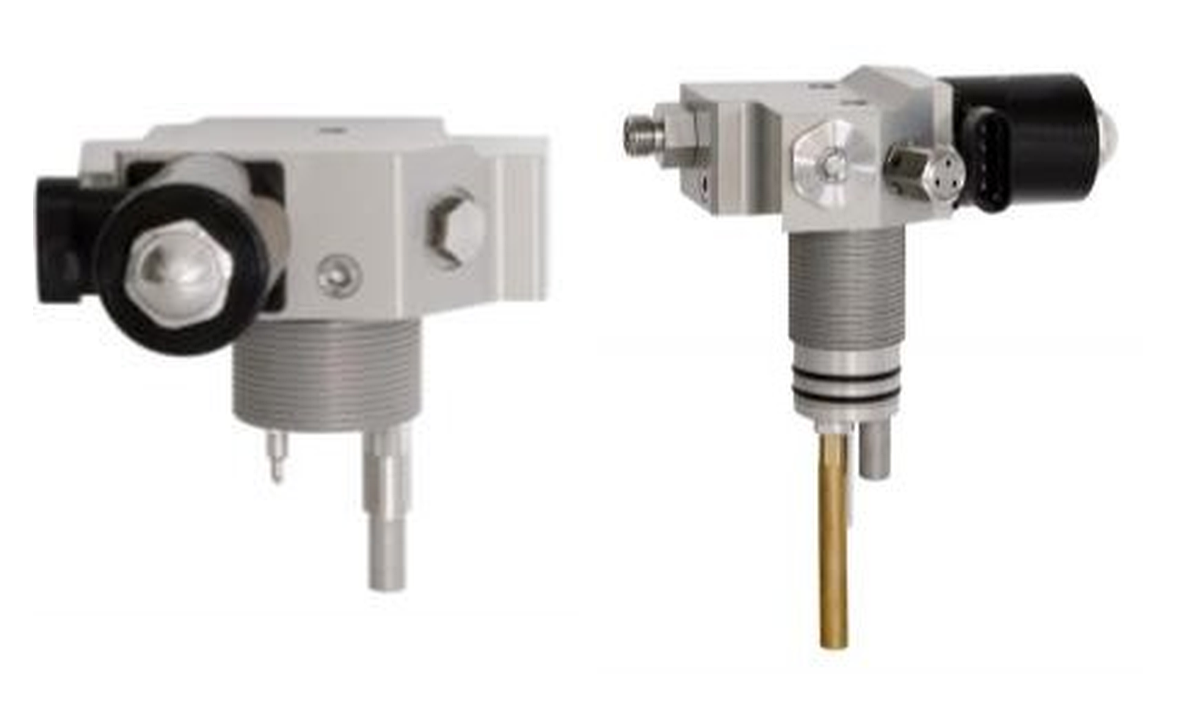

 | Hydrogen Tank Solenoid Valve | HFV-350 / HFV-700. Aluminum 6061-T6. W.P: 350 / 700bar. | H2 Fuel Cell Vehicle |

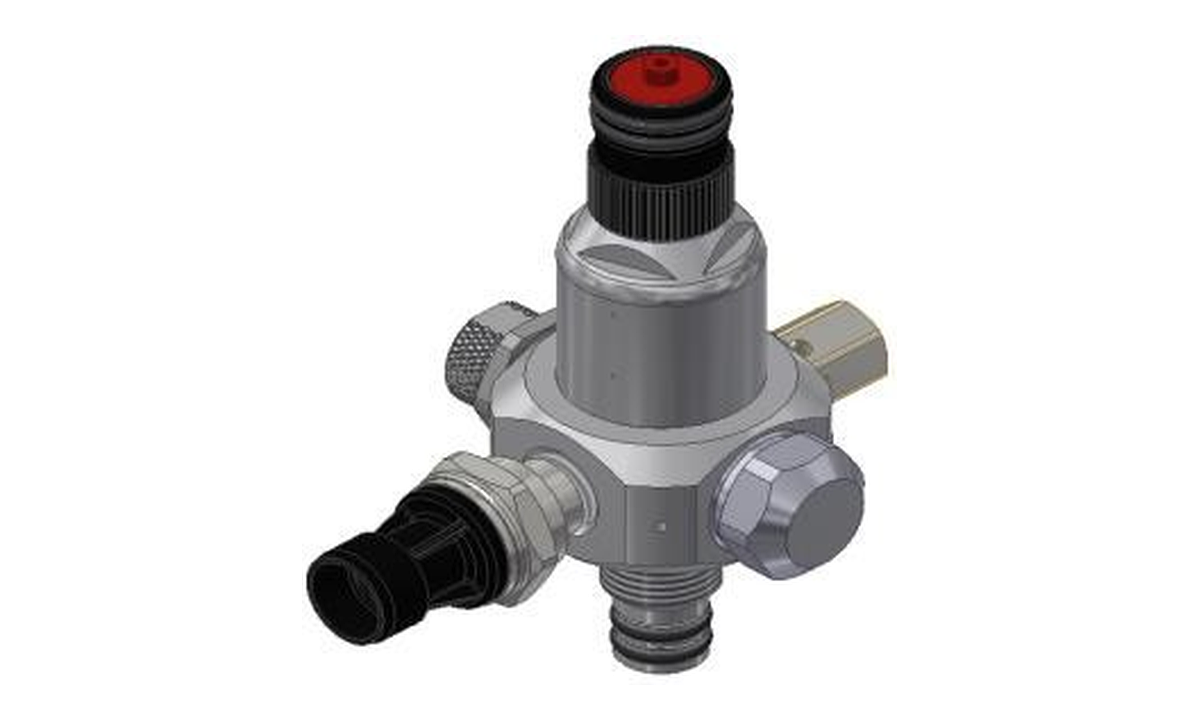

 | TPRD | Thermally Activated Pressure Relief Device for Hydrogen Tanks. | H2 Fuel Cell Vehicle / Drone |

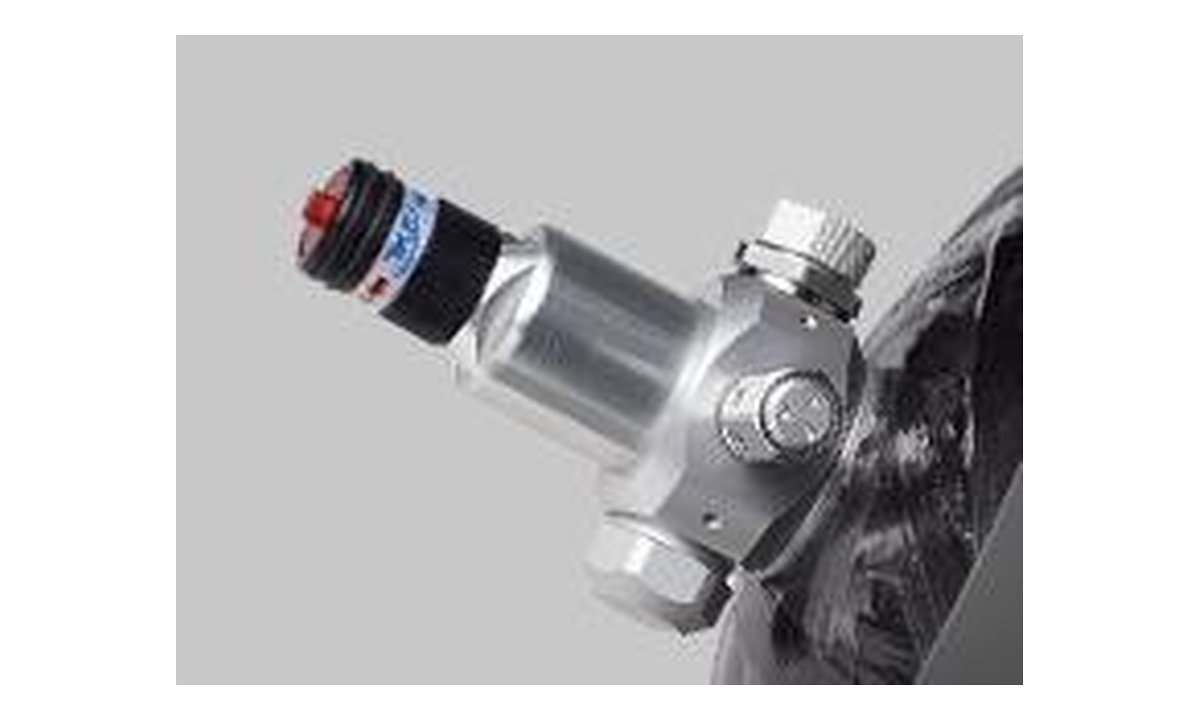

 | Pressure Sensor | High accuracy pressure sensors for hydrogen applications. | H2 Fuel Cell Vehicle / Drone |
HYDROGEN REFUELING STATION COMPONENTS
| IMAGE | PRODUCT FAMILY | DESCRIPTION | APPLICATION |
|---|---|---|---|

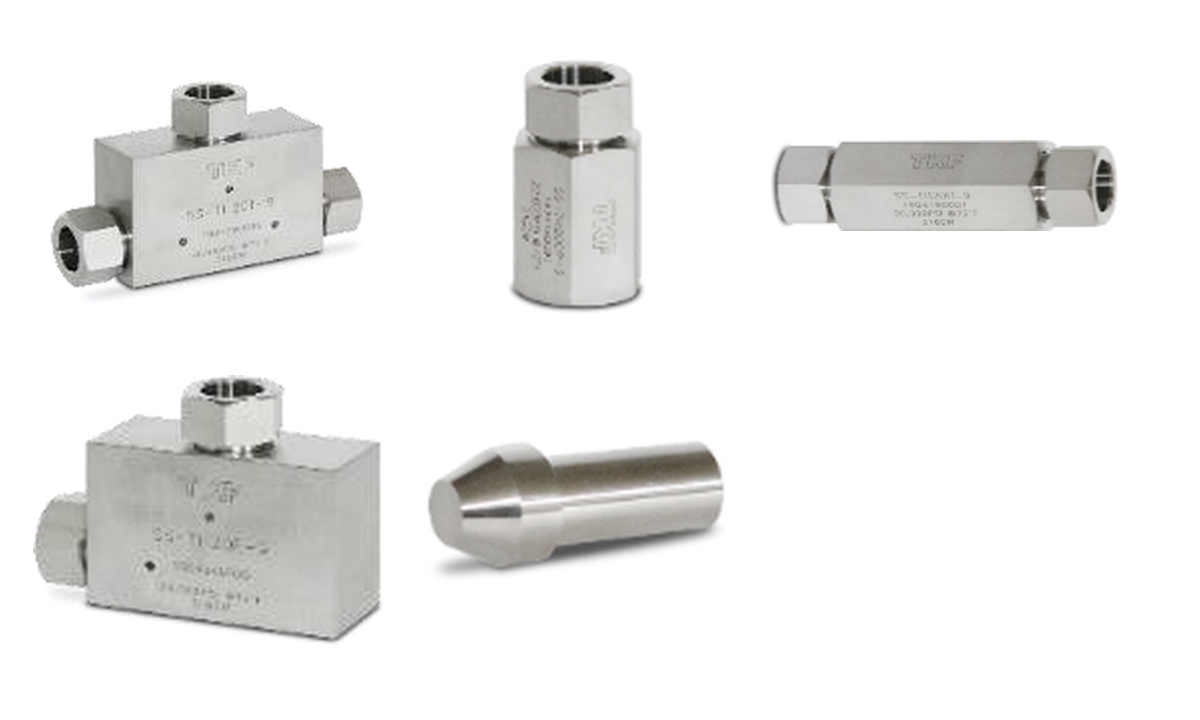

 | High Pressure Fittings | Specialized fittings rated for 20,000 psi (1,380 bar) to handle extreme hydrogen pressure. | Hydrogen Refueling Station |

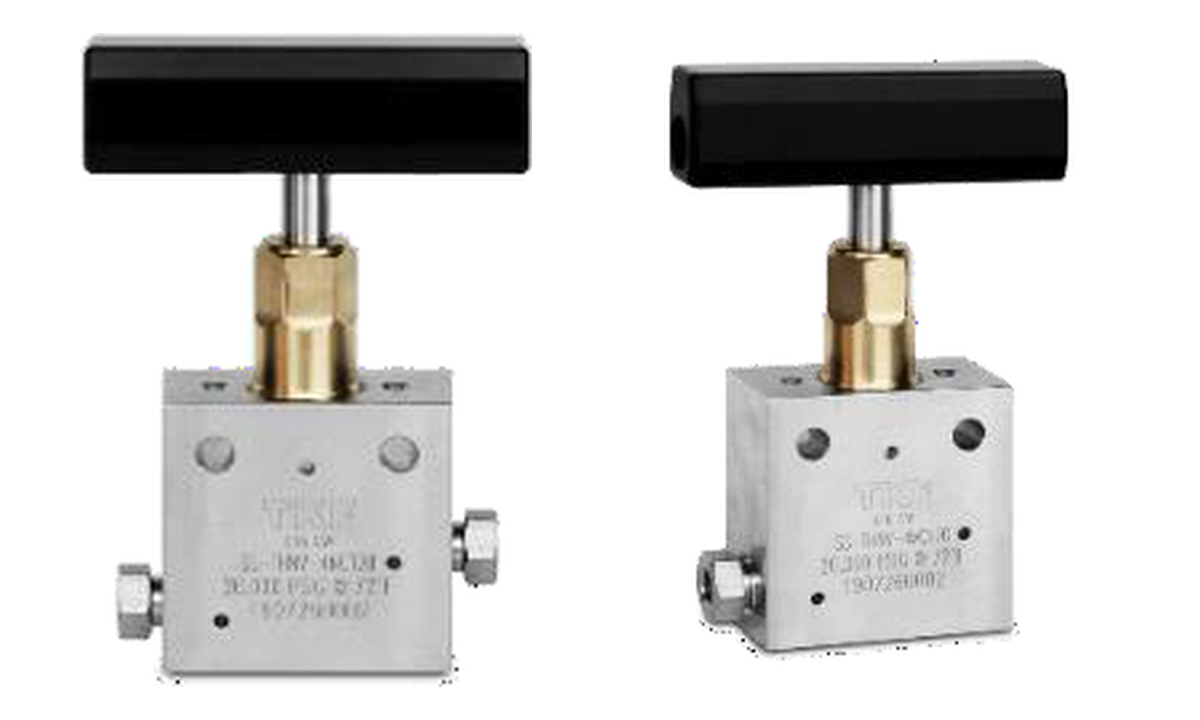

 | High Pressure Needle Valve | Needle valves rated for 20,000 psi ensuring zero-leakage control in hydrogen dispensers. | Hydrogen Refueling Station |

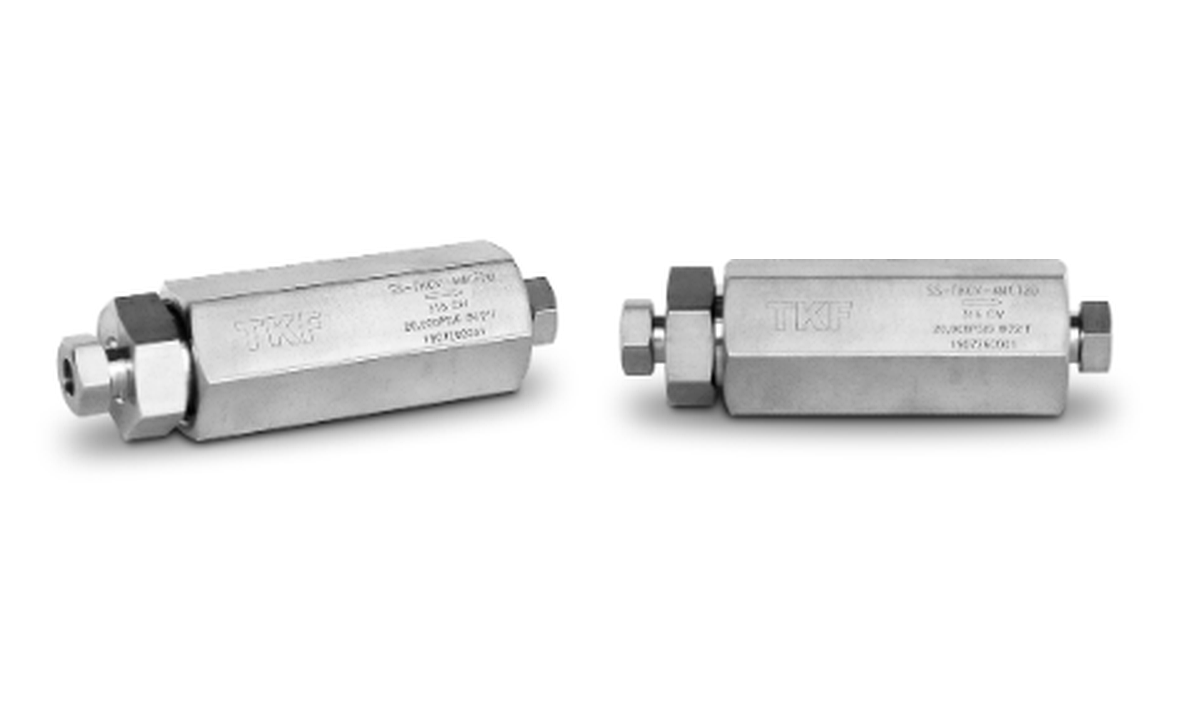

 | Ball-Seal Poppet Check Valve | Poppet check valves (20,000 psi) designed for safe unidirectional hydrogen flow. | Hydrogen Refueling Station |

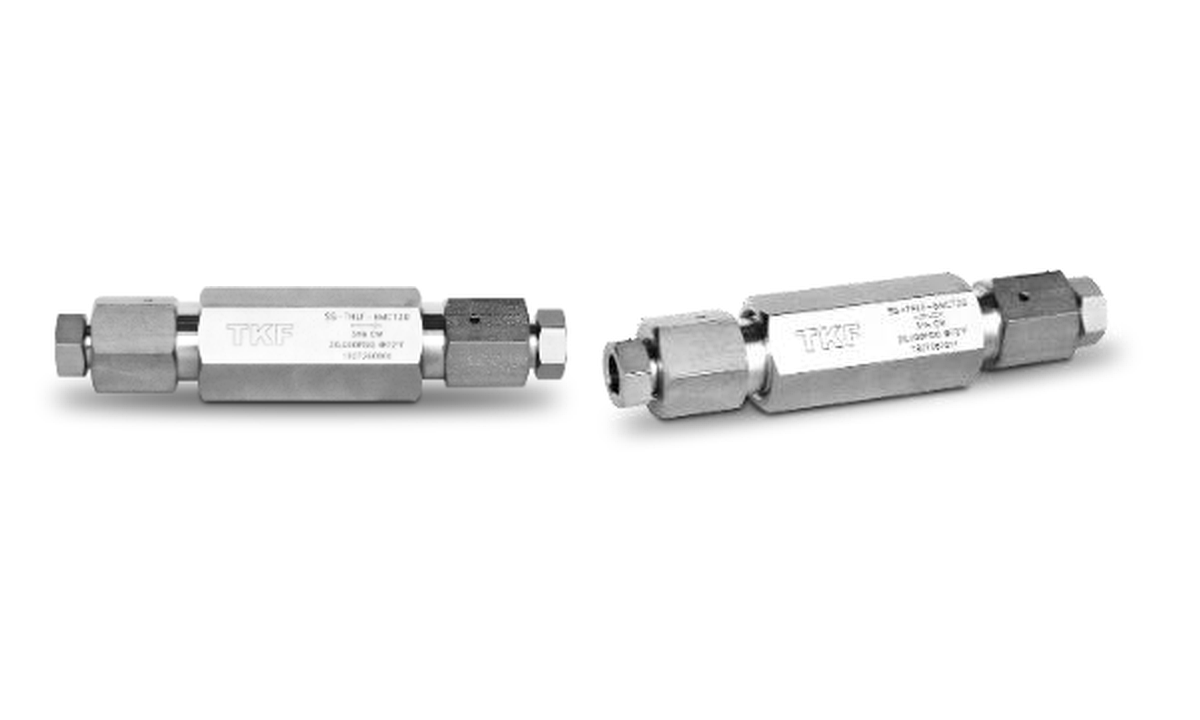

 | High Pressure Line Filter | Filters impurities in 20,000 psi hydrogen streams protecting fuel cells and vehicles. | Hydrogen Refueling Station |

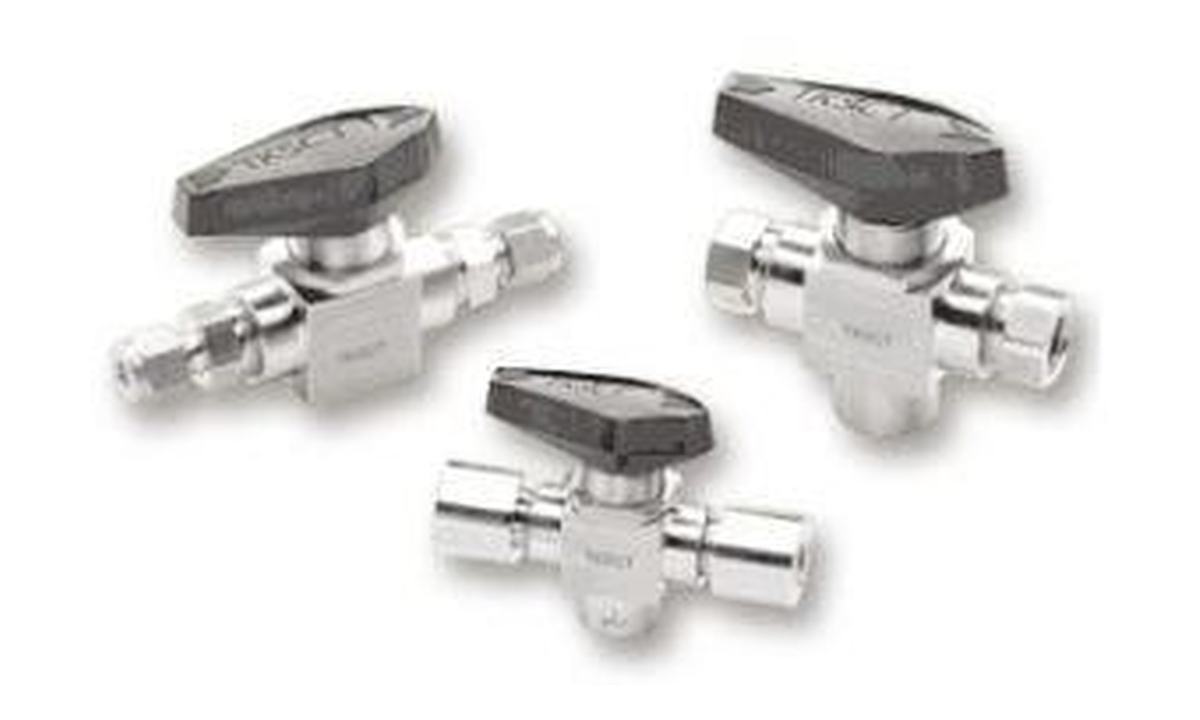

 | Trunnion Ball Valve | 6,000 psi trunnion ball valves designed for bulk hydrogen transport and storage. | Hydrogen Refueling Station |

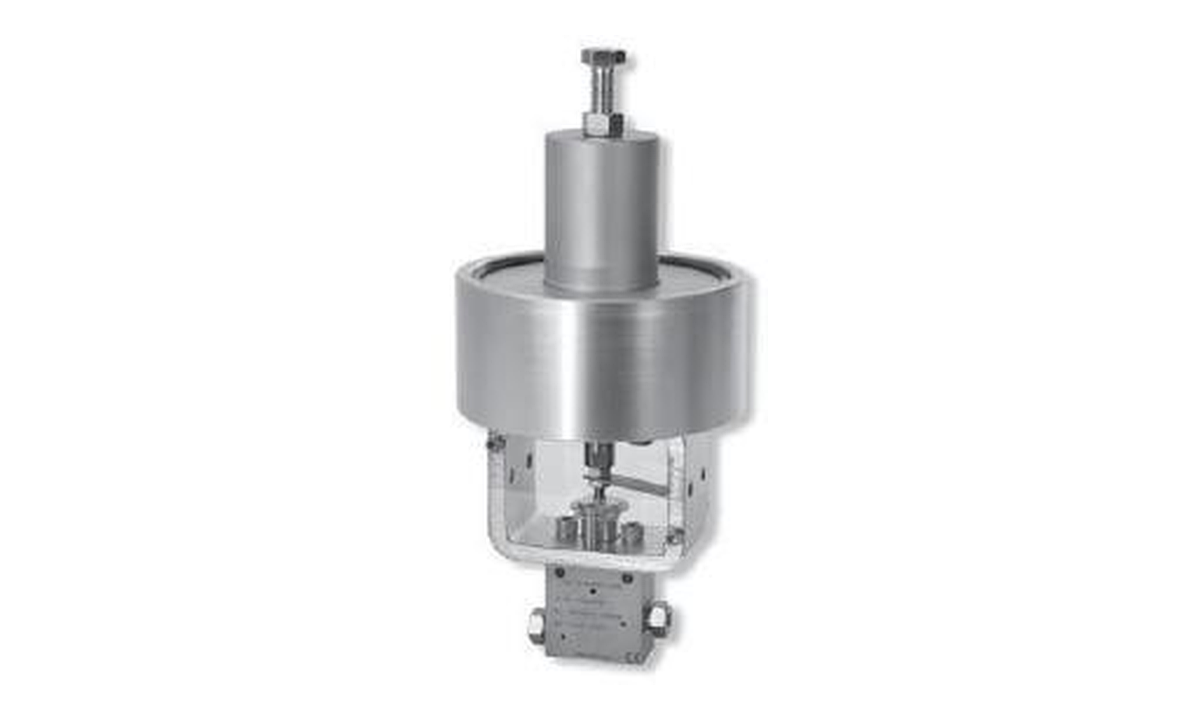

 | Adjustable Air Actuator Needle Valve | Pneumatically actuated needle valves (20,000 psi) for automated dispensing systems. | Hydrogen Refueling Station |

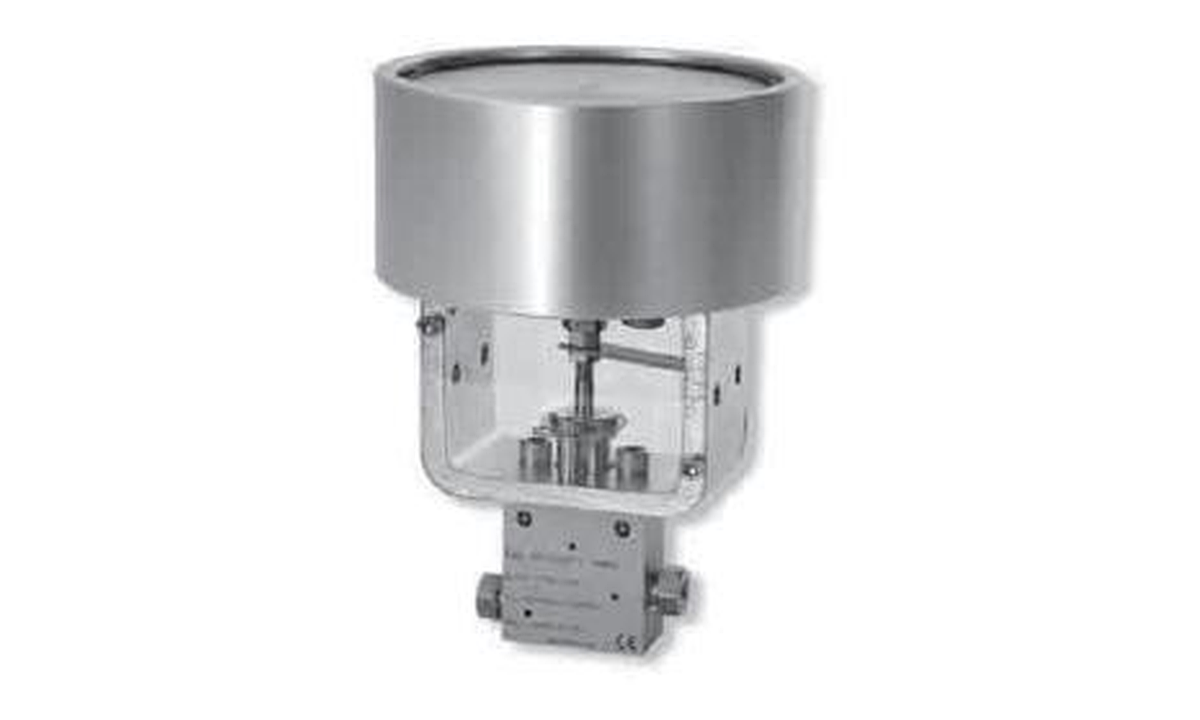

 | Air Actuator Needle Valve | Standard air actuated needle valves for high-pressure hydrogen routing. | Hydrogen Refueling Station |

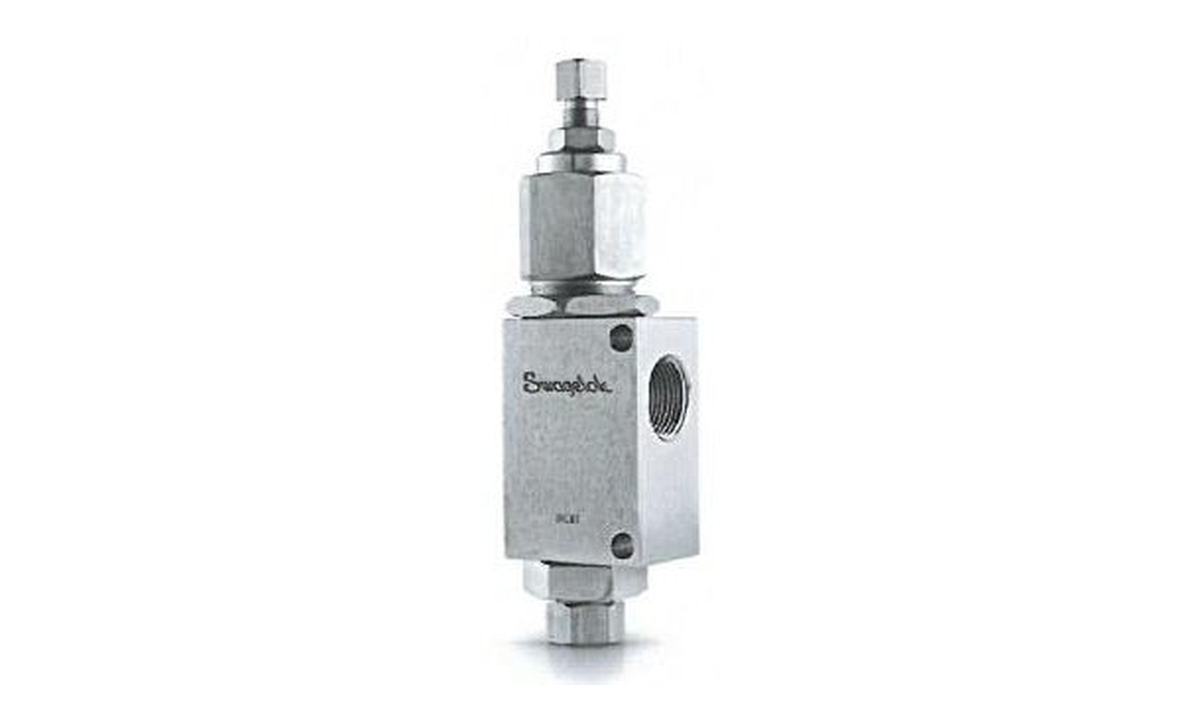

 | Set Pressure RVS Relief Valve | Safety relief valves to protect hydrogen tanks and refueling infrastructure from overpressure. | Hydrogen Refueling Station |
CNG APPLICATION
| IMAGE | PRODUCT FAMILY | DESCRIPTION | APPLICATION |
|---|---|---|---|
  | CVV1 | Hot Forged Brass. W.P: 26Mpa. | CNG Assembly |
  | CVV1A | Hot Forged Brass. W.P: 26Mpa. | CNG Assembly |
  | CVV2 | Hot Forged Brass. W.P: 26Mpa. | CNG Assembly |
  | CVV2A | Hot Forged Brass. W.P: 26Mpa. | CNG Assembly |
Datasheet e Documentação
Solicite o datasheet técnico completo, ficha de especificações ou documentação de certificação deste produto diretamente com nossa equipe.
