Segurança

Sistemas de Combate a Incêndio

Sistemas de supressão de incêndio com CO₂, FM-200, Novec 1230 e outros agentes limpos. Proteção de salas de dados, painéis elétricos e ambientes críticos.

Agentes: CO₂, FM-200, Novec 1230
Supressão total por inundação
Detecção integrada
Projeto conforme NFPA 12/2001

As características, faixas, materiais, normas e certificações variam conforme o modelo e o fabricante. Confirme os requisitos no datasheet vigente e na proposta técnica.

Descrição

Sistemas de supressão de incêndio com CO₂, FM-200, Novec 1230 e outros agentes limpos. Proteção de salas de dados, painéis elétricos e ambientes críticos.

Características Principais

Agentes: CO₂, FM-200, Novec 1230
Supressão total por inundação
Detecção integrada
Projeto conforme NFPA 12/2001
Manutenção e recarga de cilindros

Aplicações Recomendadas

Data centers e CPD

Painéis e subestações elétricas

Salas de controle

Museus e arquivos

Solicitar Informações

Nossa equipe técnica está pronta para atender sua demanda.

(31) 9 8670-8742

info@primeproducts.ind.br

Solicitar Orçamento / Suporte

Outros Produtos

Cilindros de Alumínio Cilindros Tipo 4 Conexões para Instrumentação Detectores de Vazamento

Sistemas FiwaGuard® (Homologados globalmente)

Nossos sistemas utilizam o tubo detector de calor inteligente da Fiwarec, atuando como um sensor linear de detecção e disparo automático diretamente na fonte do foco de incêndio.

Ativação puramente pneumática, sem dependência de energia elétrica.
Sistemas de Ação Direta (DLP) e Indireta (ILP) aprovados pela UL e LPCB.
Válvulas projetadas para Novec, FM200, N2, CO2 e Gases Inertes até 360 bar.
Tubos detectores de resposta rápida e 100% à prova de falhas mecânicas.

Modelos e Especificações Técnicas

Válvulas de Ativação e Sistemas FiwaGuard

Ref Visual	Produto (Fiwarec)	Dados Técnicos
	F803 - Safety Valve	release pressure: 8bar, 12bar, 20bar, 30bar \| connection: G1/8" or G1/4"

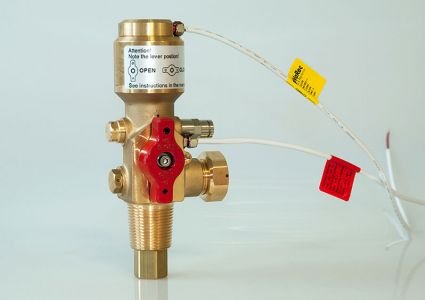

	F550 / F551 - FiWaGuard®-DHP Valve	valve seat: Ø4mm \| max. working pressure: 250bar \| extinguishing agent: chem. agents (Novec, FM200 …), CO2 and 200bar - inert gases \| inlet: EN25 (or upon request) \| outlet: 1x / 2x straight connector for FiWaGuard-fire detecting tube \| eletrical monitoring: position of ball valve and discharge signalization \| activation: pneumatic with FiWaGuard-fire detecting tube

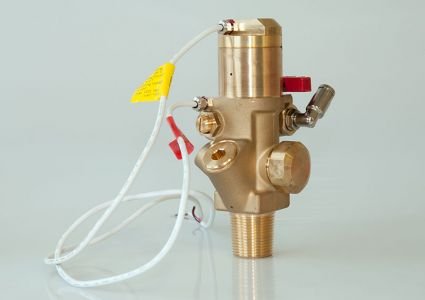

	F500 / F501 / F502 - FiWaGuard®-IHP Valve	valve seat: Ø8mm \| max. working pressure: 250bar \| extinguishing agent: chem. agents (Novec, FM200 …), CO2 and 200 bar - inert gases \| inlet: EN25 (or upon request) \| outlet: W21,8x1/14" (or upon request) \| electrical monitoring: position of ball valve and discharge signalization \| activation: pneumatic with FiWaGuard-fire detecting tube, manually, electrically

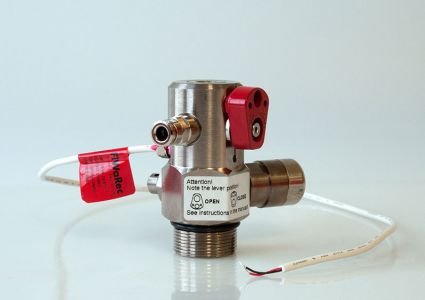

	F452 - FiWaGuard®-DLP Valve	valve seat: Ø6mm \| max. working pressure: 28bar \| extinguishing agent: chem. agent (Novec, FM200 …), powder \| outlet: 1 x / 2 x straight connector for FiWaGuard-fire detecting tube \| electrical monitoring: position of ball valve \| activation: pneumatic with FiWaGuard-fire detecting tube
	F420 - FiWaGuard®-ILP Solenoid Valve	valve seat: Ø8mm \| power supply: 24VDC +/-10% 12VDC +/-10% \| power consumption: 12W \| max. working pressure: 28bar \| activation: electrically and pneumatically with FiWaGuard-fire detecting tube \| extinguishing agent: N2, FM200, Novec, powder, water \| inlet: M30x1,5 \| outlet: 1x G1/4" or 2x G1/4"
	F402 - FiWaGuard®-ILP Valve	valve seat: Ø8mm \| max. working pressure: 28bar \| extinguishing agent: chem. agent (Novec, FM200 …), water, powder \| outlet: 1x / 2x G1/4" (or upon request) \| electrical monitoring: position of ball valve \| activation: pneumatically with FiWaGuard-fire detecting tube, manually, electrically
	F150 - FiWaGuard®-Directional Valve	valve seat: Ø6,9mm \| max. working pressure: 250bar \| extinguishing agent: N2, Ar, FM200, Novec, powder, water

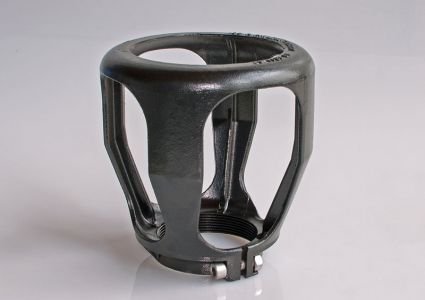

	F009 - Valve Protection Cap	design: DIN EN ISO 11117 \| thread: W80 x 1/11" \| material: steel with protection coating \| max. weight of package: 180kg
	F422 - 8mm-Solenoid Valve for Fire Suppression Systems	power supply: 24VDC +/-10% \| power consumption: 12W \| max. working pressure: 40bar \| activation: manually, electrically \| extinguishing agents: N2, FM200, Novec, powder, water \| inlet: M30x1,5 \| outlet: G3/8" \| pressure gauge connection: M10x1
	F300 - Selector Valves / Directional Valves	available sizes: 3/4"; 1"; 1 1/4"; 1 1/2"; 2"; 2 1/2"; 3"; 4" \| pressure ranges: PN140bar or PN240bar \| control pressure range: 6 - 10bar \| connection types: thread BSP or NPT till 2"; >2" flange connection \| others: integrated electrical poition control of ball valve
	F206 - DN50-Valve for Fire Suppression Systems	valve seat: Ø50mm \| max. working pressure: 110bar \| extinguishing agent: chemical extinguishing agents \| inlet: 3”-12 UN-2A \| outlet: 2 1/2”-12 UNJ-3A \| activation: manually, pneumatically, electrically
	F205 - DN33-Valve for Fire Suppression Systems	valve seat: Ø33mm \| max. working pressure: 110bar \| extinguishing agent: chemical extinguishing agents \| inlet: 2 1/2" 12 UN-2A or upon request \| outlet: 1 7/8” 12UN-3A \| activation: manually, pneumatically, electrically
	F203 - DN12-Solenoid Valve for High Pressure Fire Suppression Systems	valve seat: Ø12mm \| optional Explosion Protection: ATEX (Directive 94/9EG - II 3GD IIB T4) \| max. working pressure: 360bar \| extinguishing agents: chem. agents (Novec, FM200 …), CO2, 200bar - 300bar inert gases \| inlet: EN25 or upon request \| outlet: W21,8x1/14" or upon request \| activation: electrically, manually, pneumatically \| electr. activation: 24VDC / 0,4A
	F202 - DN12-Valve for High Pressure Fire Suppression Systems	valve seat: Ø12mm \| optional Explosion Protection: ATEX (Directive 94/9EG - II 2GD IIB T6) \| max. working pressure: 360bar \| extinguishing agents: chem. agents (Novec, FM200 …), CO2, 200bar - 300bar inert gases \| inlet: EN25 or upon request \| outlet: W21,8x1/14" or upon request \| activation: manually, pneumatically, electrically
	F1120030 - Solenoid Actuator for Valves F205/F206	power supply: 24VDC +/-10% \| power consumption: 9,5W \| current: 0,4A
	F1120014 - Pneumatic Actuator for Valves F203	pilot pressure: 60bar up to 360bar \| connection: G1/8"
	F1120013 - Manual Actuator for Valves F203
	F1120011 - Pneumatic Actuator for Valves F202 - small	pilot pressure: pmin. = 20bar at max. cylinder pressure 360bar \| connections: 2x G1/8"
	F1120008 - Pneumatic Actuator for Valves F202 - large	pilot pressure: pmin. = 5bar at max. cylinder pressure 360bar Pmax. = 200bar \| connections: 2x G1/8"
	F1120007 - Pneumatic Actuator for Valves F202 - medium	pilot pressure: pmin. = 8bar at max. cylinder pressure 360bar \| connections: 2x G1/8"
	F1120006 - Pneumatic / Manual Actuator for Valves F202	pilot pressure: pmin. = 8bar at max. cylinder pressure 360bar \| connections: 2x G1/8"
	F1120005 - Manual Actuator for Valves F202

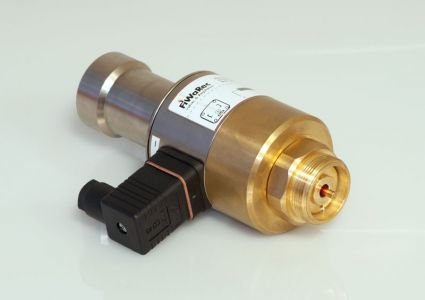

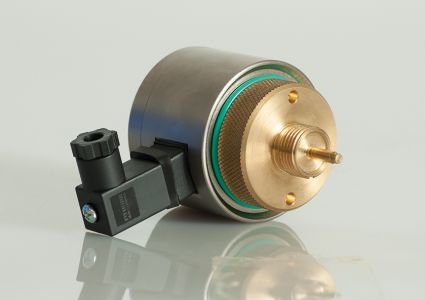

	F1120004 - Electrical Actuator for Valves F202	power supply: 24VDC +/- 4VDC \| power consumption: 12W \| current: 0,5A
	F016 - Non-return Valve for Pilot Line	max. working pressure: 360bar \| min. opening pressure: approx. 0bar \| connection: 2x G1/8" \| nominal wide: 4mm

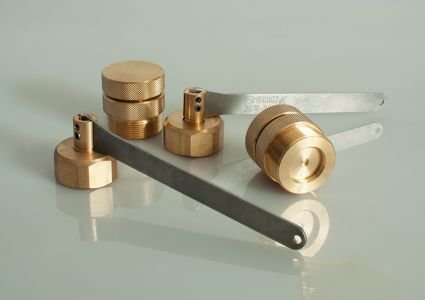

	F0150003, F0150007 - Reset-Tools for Electr. Actuator for Valves F202
	F009 - Valve Protection Cap	design: DIN EN ISO 11117 \| thread: W80 x 1/11" \| material: steel with protection coating \| max. weight of package: 180kg

Tubos Detectores e Mangueiras

Ref Visual	Produto (Fiwarec)	Dados Técnicos
	F102 - FiWaGuard®-Fire Detecting Tube 4x6 (black)	quality: HR-quality \| layers: 2 \| approvals: UL-recognized component, LPCB tested
	F100 - FiWaGuard®-Fire Detecting Tube 4x6 (red)	quality: standard \| layers: 1 \| approval: UL-recognized component

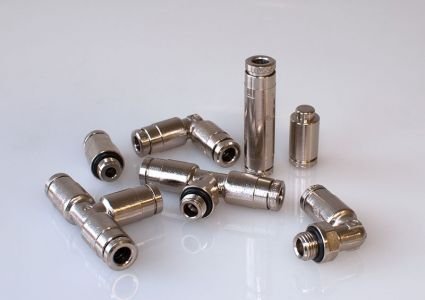

	F001 - FiWaGuard®-Connectors for FiWaGuard-Fire Detecting Tube

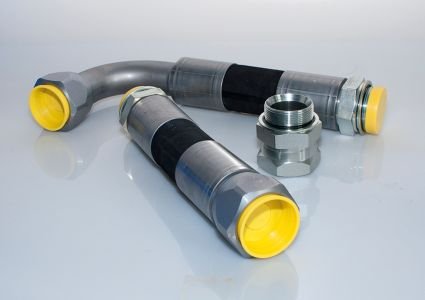

	F107, F108 - Discharge Hoses DN33 and DN50	nominal wide: 33mm or 50mm \| length: 300-1400mm \| max. working pressure: 120bar (DN33) or 105bar (DN50) \| design: straight or with 90°-bow
	F105, F106 - Discharge Hoses DN12 and DN16	nominal wide: 12mm or 16mm \| length: 300-1200mm \| max. working pressure: 360bar \| design: straight or with 90°-bow
	F104 - Pilot Hose DN5	nominal wide: 4mm \| lenght: 150-1500mm \| max. working pressure: 360bar
	F0010000 - Adaptor for Pilot Hose	G1: G1/8" \| G2: M12x1,5 \| max. working pressure: 360bar \| additional variants: T-connector (E6130003),...

Atuadores (Manuais, Pneumáticos e Elétricos)

Ref Visual	Produto (Fiwarec)	Dados Técnicos

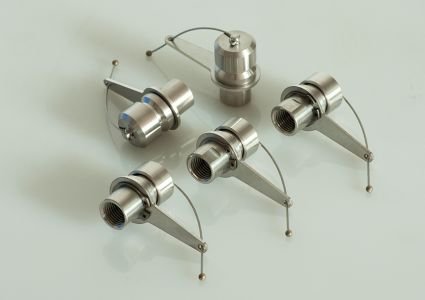

	F114 - FiWaGuard®-Glass Bulb Actuation Device	Activation Temperature Classes: 68°C, 79°C, 93°C (additional Options on request) \| Response Class of Glass Bulbs: "fast" - RTI = 33(ms)1/2 / 59(fts)1/2 \| Connection Thread: G1/8" (female) \| Material: Stainless Steel \| Options: Fixing Nut and additional Protection Cage for Heavy Duty Use
	F111 - FiWaGuard®-Solenoid Actuator	power supply: 24VDC +/-10% \| power consumption: 12W \| max. working pressure: 28bar

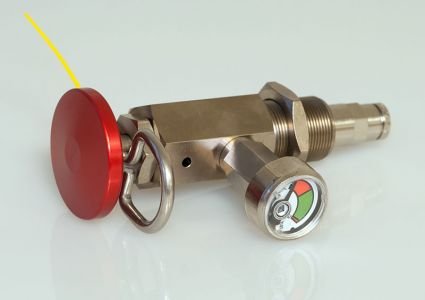

	F110 - FiWaGuard®-Manual Actuator	pressão máxima de trabalho: 28 bar

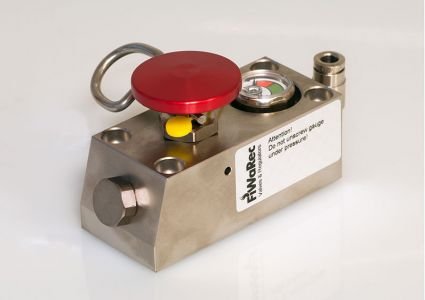

	F110 - FiWaGuard®-Manual Actuator B	pressão máxima de trabalho: 28 bar

Manômetros e Sinalizadores

Ref Visual	Produto (Fiwarec)	Dados Técnicos
	F070 - Signal Generator	pressão máxima de trabalho: 28 bar \| conexão: G1/8", M10x1 ou sob consulta \| contato de comutação: 4–8 bar; NO ou NC

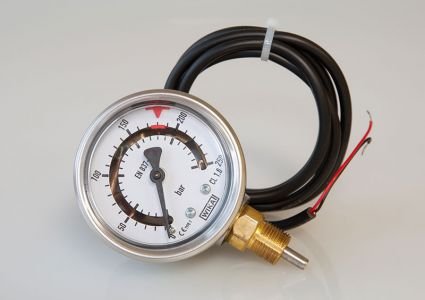

	F053 - Pressure Gauge with Switch Contact for High Pressure	max. working pressure: 360bar \| connection: M12x1 \| switch contact:: upon request

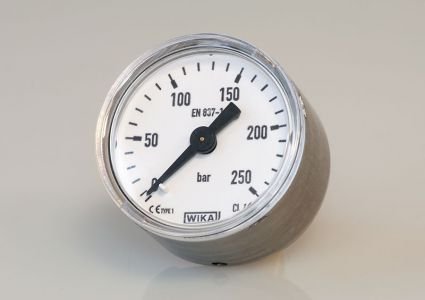

	F052 - Pressure Gauge for High Pressure	max. working pressure: 360bar \| connection: M12x1

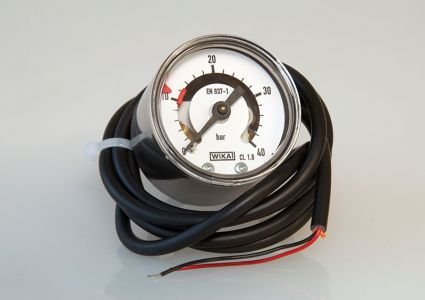

	F051 - Pressure Gauge with Switch Contact for Low Pressure	pressão máxima de trabalho: 28 bar \| conexão: M10x1 \| contato de comutação: sob consulta
	F053 - Pressure Gauge with Switch Contact for High Pressure	max. working pressure: 360bar \| connection: M12x1 \| switch contact:: upon request
	F052 - Pressure Gauge for High Pressure	max. working pressure: 360bar \| connection: M12x1

Difusores, Conexões e Acessórios

Ref Visual	Produto (Fiwarec)	Dados Técnicos
	F011 - Puncture Disc for F110, F204, F422

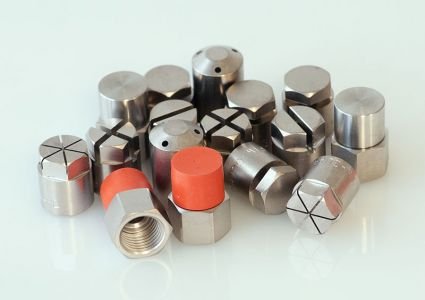

	F006 - Nozzles	extinguishing agents: powder, waterbased agents, foam, CO2 …
	F006 - Nozzles for Kitchen Fire Suppression System	extinguishing agent: waterbased agents, foam \| spray form: full cone (different angles)
	F212 - Constant Pressure Regulator	cross section: Ø14,5mm \| max. inlet pressure: 360bar \| outlet pressure: 60bar static or upon request \| flow rate: 140Litre nitrogen (300bar) in less than 1min

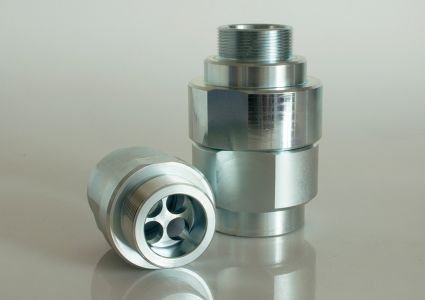

	F018, F019 - Check Valve for Discharge Line DN33 and DN50	max. working pressure: 70bar \| connection: 2x G1 1/2" (DN33) or 2x G2" (DN50) \| nominal wide: 33mm or 50mm
	F017 - Check Valve for Discharge Line DN12	max. working pressure: 360bar \| connection: 2x G3/4" or upon request \| nominal wide: 12mm
	F0150018 - Vent Valve for Pilot Line	max. working pressure: 360bar \| connections: 1x G1/8"
	F015 - Bleed Valve for Pilot Line	max. working pressure: 360bar \| connections: G1/8" or DKOL 6L \| reseating pressure: 0.5bar static / approx. 0.7bar dynamic \| features: integrated optical control to show if the valve is closed (pressurized)
	F011 - Puncture Disc for F110, F204, F422
	F007 - Discharge Nozzles 180° and 360°	nominal widths: 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" \| max. working pressure: 90bar \| orifice sizes: variable (drilled out by customer)
